AERO-INV SeriesTM - Power Inverter

The AERO-INV SeriesTM is a Ruggedized Aerospace DC to AC Power Inverter
family of products provides reliable, cost effective DC to AC inverter power solutions.

THE AJPS AEROSPACE GRADE DC TO AC INVERTER EFFECTIVELY CONVERTS DIRECT CURRENT (DC) TO ALTERNATING CURRENT (AC)

Aerospace Power Inverter

The Ruggedized Aerospace DC to AC Power Inverter family of products provides reliable, cost effective DC to AC inverter power solutions. The different power levels range from 500 watts DC to AC Power Inverter to 800 watts DC to AC Power Inverter and have no need for forced air cooling. The heat produced by the internal power conversion is removed by the exterior cooling fins.

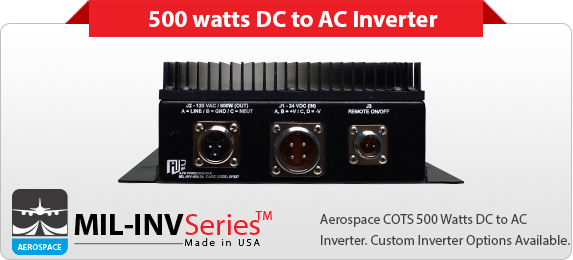

COTS Ruggedized Aerospace Tactical DC to AC 500 Watts Power Inverter. Submersible IP67 IP68 Waterproof. Custom Inverter Options Available. Read more

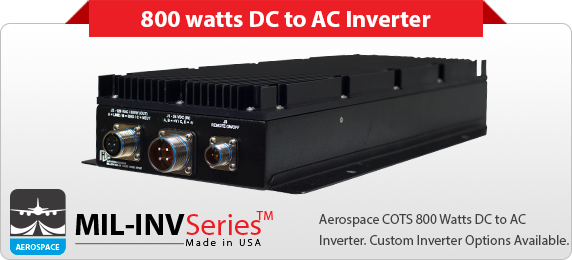

COTS Ruggedized Aerospace Tactical DC to AC 800 Watts Power Inverter. Submersible IP67 IP68 Waterproof. Custom Inverter Options Available. Read more

Units are designed to meet these standards but, each unit must be tested at system level.
Shielded cables and line filters required.

MIL-STD-810F

Humidity | Altitude | Sand and Dust |
Shock and Vibration | Temperature

MIL-STD-461E

RE101 | RE102 | CE101 | CE102 | CE103

STANDARDS

MIL-STD-882D | MIL-STD-1472F | MIL-STD-1474D

Aerospace Power Inverter

Aerospace Power Inverter family of products provides reliable, cost effective DC to AC inverter power solutions. The different power levels range from 500 to 800 watts and have no need for forced air cooling. The heat produced by the internal power conversion is removed by the exterior cooling fins. Options are available with 12VDC, 24VDC & 48VDC input ranges with a True Sine Wave 120VAC or 230VAC output.

The fully sealed enclosure will ensure that sand, dust, debris, rain, submersion (IP67) & other environmental conditions will not impact the functionality of the inverter. The ruggedized mechanical design will meet drop, shock & vibration standards of MIL-STD-810F and continue to perform as specified. Aerospace Portable Power Inverter, Aerospace DC AC Power Inverter, Aerospace Rugged Power Inverter and Aerospace Certified Power Inverter.

AJ’s Power Source Inc. has designed the AERO-INV SeriesTM in two configurable power options AERO-INV-500 (500 watts) and AERO-INV-800 (800 Watts) in a wide range of options available to suit your design parameters such as: multiple DC input voltage ranges available, environmentally Sealed Chassis and Connectors, 120VAC or 230VAC Output, true sine wave, custom chassis options available upon request.

The AJPS Aerospace Power Inverter Effectively Converts Direct Current (DC) to Alternating Current (AC).

The AERO-INV SeriesTM of high reliability inverters offers DC to AC solutions for your system needs. Standard commercial off the shelf (COTS) part number solutions provides shorter lead times while maintaining the rugged design. The utilization of industry standard MIL Circular Connectors allows for readily available off the shelf components. Whether your application calls for in house or field use, the MIL-INV Series is an easy choice.

Aerospace Power Inverter solutions for Aerospace Aircraft & Avionics, battery, solar panels & renewable energy solutions allow for field applications and non-conventional applications.

To learn more about our Ruggedized DC to AC Portable or Hard Mount Inverters that are designed for the Aerospace Industry, please do not hesitate to call our office today at (813) 996-2583 or Contact us by email.
