The Industrial Sealed IP67 AC DC Power Supply series is an
ultra-high efficiency family of Military Sealed IP67 Power Supplies.
IEEE Standards
Protection | Energy & Standby | System Reliability |
Operations & Safety | Maintenance
UL Standards
Health & Safety | Cybersecurity | Rain Nozzles |Temperature Control | Environment
TUV & CE Standards
Safety & Quality | OSHA and SCC regulation |Electrical & Fire Safety
* Units are designed to meet these standards but, each unit must be tested at system level. Shielded cables and line filters required. Read more

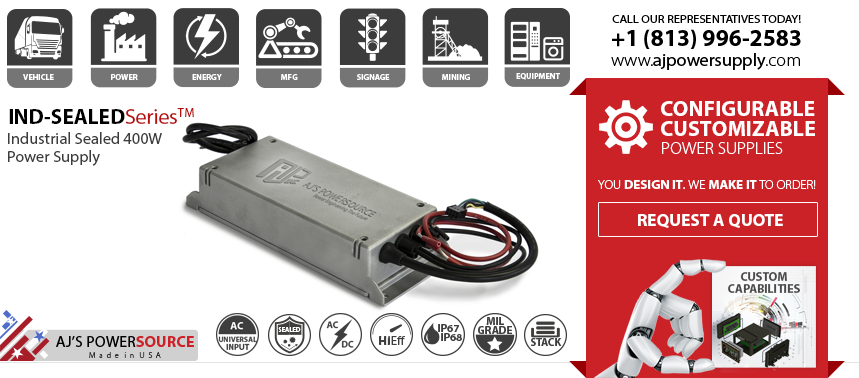

Our Industrial Sealed IP67 AC DC Power Supply is an ultra-high efficiency family of environmentally sealed Industrial Power Supplies
The INDUSTRIAL-SEALED SeriesTM includes Industrial Sealed IP67 AC DC Power Supply that provides High Reliability with affordable off the shelf availability in a product that performs under extreme conditions, even submerged under water!
Our Industrial Sealed IP67 AC DC Power Supply provides reliable, cost effective environmentally sealed power conversion. The INDUSTRIAL-SEALED SeriesTM offers a highly reliable standard Industrial off the shelf solution with short lead times in a rugged design. The INDUSTRIAL-SEALED SeriesTM from AJPS operates from wide range AC input (85 – 305VAC) and is available in standard output voltages of 12, 24 and 48 VDC. Each product is Hermetically Sealed and carries an IP67 rating for ingress of dirt/dust and water. The products are cooled via natural conduction/convection (no air flow needed) supported by ultra High Efficiency up to 94%. Units can be operated in series for higher power applications.
Highlights
- Sealed enclosure, IP67 ingress protection
- High Efficiency (up to 94%)
- Universal input voltage range (85 – 305VAC)
- DC input also available
- Input surge current limiting
- 400 Watt Max Power
- 12, 24 and 48 VDC standard output voltages
- Low stand-by power consumption (<0.5 W)
- Low earth / touch leakage current
- Active PFC, EN61000-3-2 compliant (Class C, >25% load)
- OV, OC and SC protections
- Stand-by +5Vdc 2A and Auxiliary +12Vdc 1A outputs
- Remote On / Off signal
- Over temperature protections
-
Input Voltage: 85 – 305 VAC (50/60, 400Hz) / 170 VDC to 270 VDC
Efficiency: Up to 94%
Hold Up Time: up to 35ms
Operating Temperature: -20 ºC to 70 ºC
Storage Temperature: -40 ºC to 85 ºC
Load Regulation: +/- 2%Line Regulation: +/- 0.1%
Thermal Protection: Over temperature / Latch off
Humidity: 90% RH, Non-condensing, operating
Altitude: 50,000ft (15,000m)
OVP %: 110 to 136 (%V) -
