Shipboard BackPlane System

The AJ’s Power Source BackPlane System for Shipboard Zonal Power Management provides a stackable and flexible power solution with user interfaces

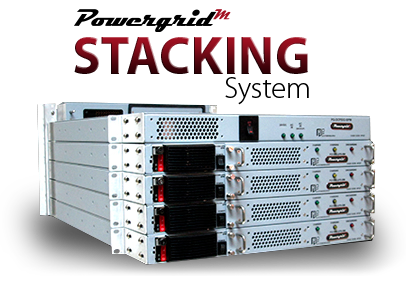

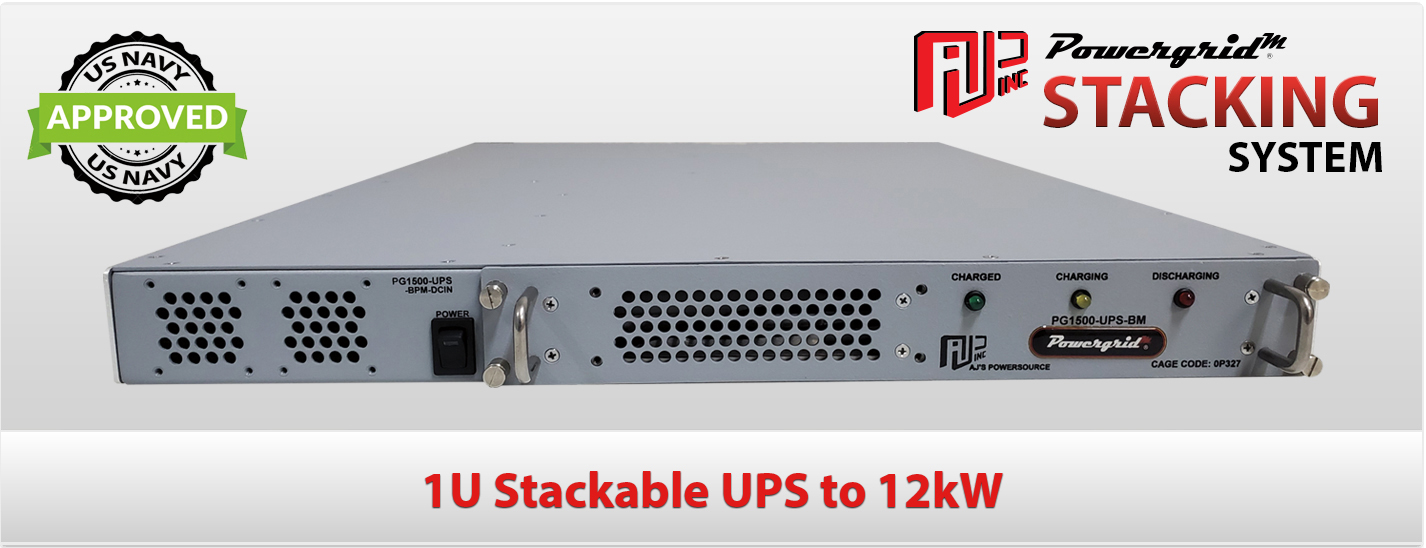

Backplane systems are available in sizes from 3U to 10U housing as many as 10 UPS Modules or Battery Modules. The Backplane provides a stackable and flexible power solution with user interfaces including electrical connections, circuit breakers and system communication ports in a compact design that fits into standard 19 inch Equipment Racks. SNMPv3 signals provide network monitoring of entire system.

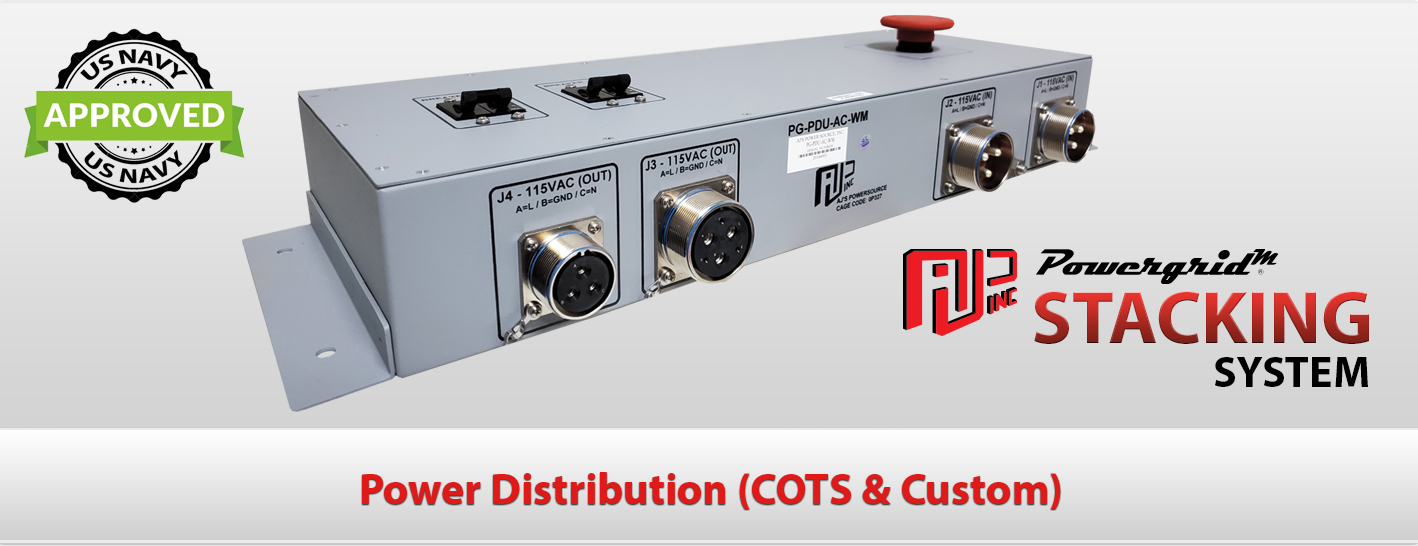

Connect the BackPlane System to an optional COTS Power Distribution Unit (PDU) for additional functionality and interconnection to Shipboard Systems.

Highlights

Input: 48VDC
Output: 120VAC / 60Hz / 12kVA

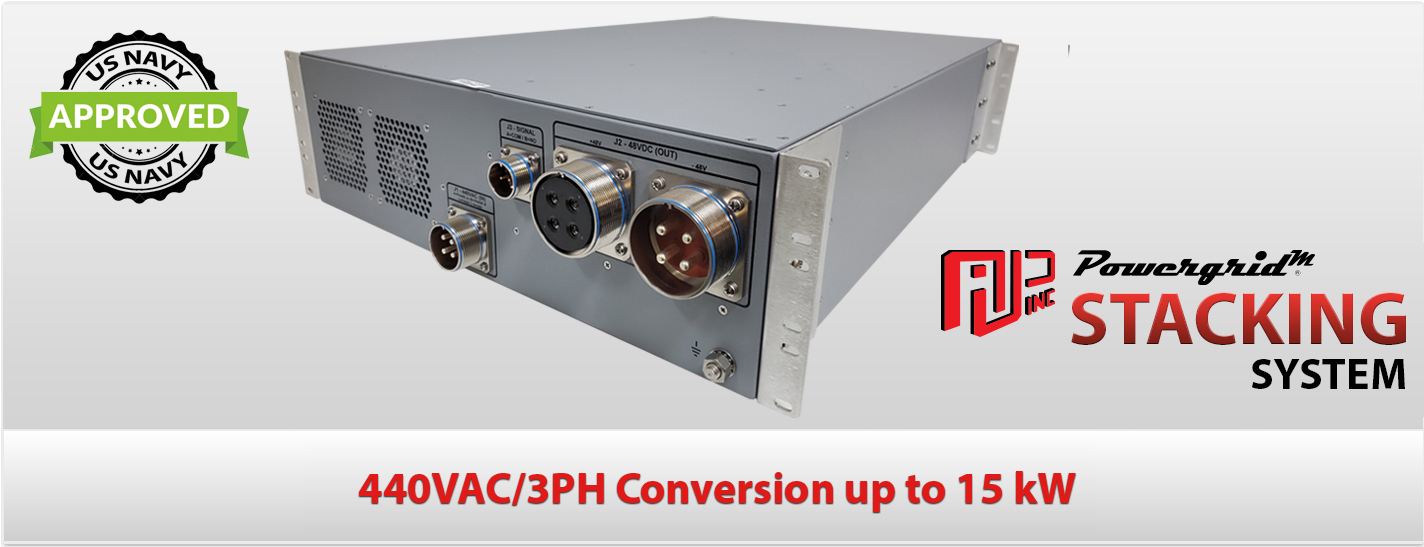

Rear Connectors

  • DC Input MS3452L32-17P (+V), Pin A-D=+Vin
  • MS3452L32-17S (-V), Pin A-D=-Vin
  • AC Output 2 X MS3452L28-6S, A=Line, B=Ground, C=Neutral
  • Signal MS3452L16-4S, A=Contact 1, B=Contact 2
  • Alarm MS3452L12S-3S J4
  • Ethernet Connection SNMP v3, 1 x RJ-45 Compliant

Signals:

  • Battery charged
  • Battery charging
  • Battery discharging
  • Over temperature warning
  • UPS connected to a slot (all 10)
  • Data Available over Network:
  • Battery Status (Charged, Charging, Discharging) for each UPS
  • AC Input (OK/Fail), AC Output (OK/Fail), (OK/Fail) Temperature
  • Safety Ground Stud ¼ -20 Stud
  • AC Output Breaker (x 2) 60 Amp

Physical Properties:

  • Dimensions up to 10U, 17.47”H x 13.88”W x 3.06”D
  • Mounting (Rear mount) 10U 19 Inch Rack
  • Weight less or equal than 24 lbs.
  • Material Aluminum
  • Color/Finish Gray
Ajs Power Source BackPlane System

Certifications:

The following certifications are in place for AJ’s Power Source Next Gen Shipboard Electrical Power Management Systems:

  • S9310-AQ-SAF-010 US Navy Safety Certification for LiFeP04 batteries
  • MIL-STD-461 EMI including
    • CE101, CE102
    • CS101, CS106, CS114, CS115, CS116
    • RE101, RE102
    • RS101, RS103
  • MIL-STD-810 Environmental
  • MIL-S-901D Shock
  • MIL-STD-167-1A Mechanical Vibration
  • MIL-STD-1399 Shipboard Power
