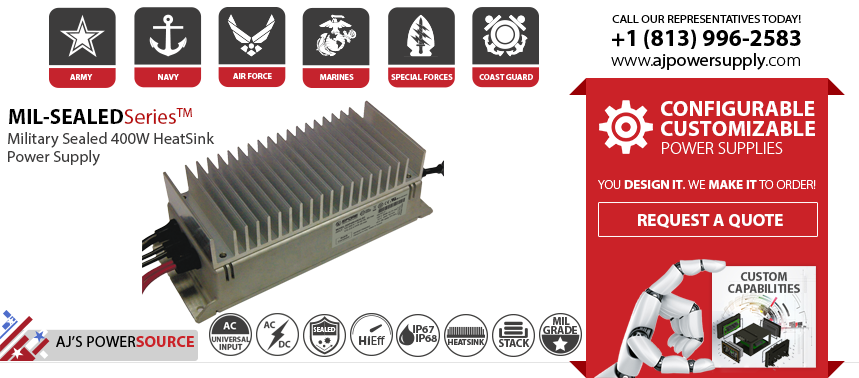

The Military Sealed Heatsink AC DC Power Supply series is an
ultra-high efficiency family of Military Sealed IP67 Power Supplies.
Humidity | Altitude | Sand and Dust |
Shock and Vibration | Temperature
RE101 | RE102 | CE101 | CE102 | CE103
MIL-STD-1399-300B Type I

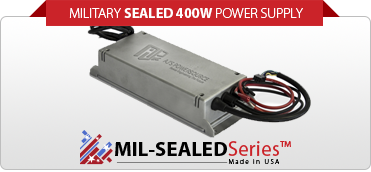

Military Waterproof IP65 AC DC Power Supply series is an environmentally sealed, ultra-high efficiency family of Military Power Supplies
The MIL-SEALED SeriesTM is a Military Waterproof IP65 AC DC Power Supply family that provides High Reliability with COTS availability and affordability in a product that performs under extreme conditions even submerged under water!
Our Military Waterproof IP65 AC DC Power Supply provides reliable, cost effective AC to DC Waterproof power solutions. The MIL-SEALED SeriesTM offers a highly reliable standard commercial off the shelf (COTS) solution while providing shortened lead times in a rugged design. The MIL-SEALED SeriesTM from AJPS operates from wide range AC input (90 – 264Vac) and is available in standard output voltages of 12, 24 and 48 VDC. Each product is Hermetically Sealed and carries an IP65 rating for ingress of dirt/dust and water. The products are cooled via natural conduction/convection (no air flow needed) supported by ultra High Efficiency up to 94%. Units can be operated in series for higher power applications.
- Sealed enclosure, IP65 ingress protection
- High Efficiency (up to 94%)
- Universal input voltage range (90 – 264 VAC)
- DC input also available
- Input surge current limiting
- 400 Watt Max Power
- Low stand-by power consumption (<0.5 W)
- 12, 24 and 48 VDC standard output voltages
- Active PFC, EN61000-3-2 compliant (Class C, >25% load)
- Low earth / touch leakage current
- Over temperature protections
- OV, OC and SC protections
- Stand-by +5Vdc 2A and Auxiliary +12Vdc 1A outputs
- Remote On / Off signal
Input Voltage – 90 VAC to 264 VAC / 170 VDC to 270 VDC
Efficiency – Up to 94%
Hold Up Time – 16 ms
Operating Temperature – -20 ºC to 70 ºC
Storage Temperature – -40 ºC to 85 ºC
Load Regulation – +/- 2%
Line Regulation – +/- 0.1%
Thermal Protection – Over temperature / Latch off
Humidity – 90% RH, Non-condensing, operating
Altitude – 50,000ft (15,000m)
OVP % – 110 to 136 (%V)
