Power Distribution SeriesTM - Circular Connector

The Power Distribution SeriesTM is a Military Circular Connector Power Distribution
Utilized for the Connection of User Equipment to a Single PowergridM UPS System.

Side-Nav_Image-01

MIL-STD-810F
Humidity | Altitude | Sand and Dust |
Shock and Vibration | Temperature

MIL-STD-461E
RE101 | RE102 | CE101 | CE102 | CE103

MIL-STD-882D
MIL-STD-1472F
MIL-STD-1474D
MIL-STD-1399-300B Type I
MIL-STD-1275

Military Circular Connector Power Distribution Designed to meet the Military Standards MIL STD 1275 – MIL STD 1399 – MIL STD 704 – MIL STD 461 – MIL STD 810

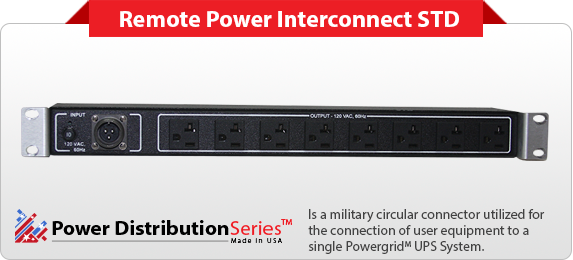

The Ruggedized PG-PRIM-STD is a Military Circular Connector Power Distribution Utilized for the Connection of User Equipment to a Single PowergridM UPS System. Single or Three Phase Options.

Each PowergridM Power Distribution unit is equipped with 8 standard NEMA 5-15P connections for interconnecting user equipment and one male MIL style connector for the power connection to the single PowergridM UPS system. Each of the user equipment ports is equipped with an independent power breaker allowing the user to disconnect power to any one of the equipment power connections as required. In addition, this unit is equipped with one primary power breaker that will disengage power to all user equipment ports as needed. The mounting brackets are designed to be removable or rotated either 90°/180°/270° to allow maximum mounting flexibility.

MIL STD 461 UPS | MIL STD 810 UPS
EMI / EMC – PowergridM UPS system has been designed to comply with all the radiated emissions, susceptibility and conductive emissions requirements of the applicable sections of MIL STD 461F. The following is a list of methods used for controlling emissions: RE102 | CE102 | CS101 | CS114 | CS115 | CS116 | RS103 DESIGNED TO MEET
Environmental MIL-STD-810G: Humidity, Altitude, Sand and Dust, Shock and Vibration, Temperature.

Highlights

• Push/Pull Master Breaker for Power Disconnect for All Connections.
• Remove and Rotate Mounting Brackets for Maximum Flexibility.
• 8 User Equipment Connections With Selectable Connector Types.
• 1 Primary Power Connection for PowerGridM UPS Connect.
