Power Distribution SeriesTM - VDC Rackmount DC to DC

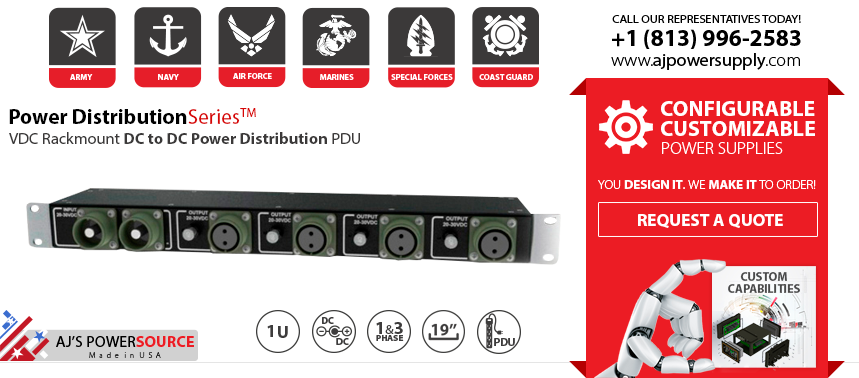

The VDC Rackmount DC to DC Power Distribution Unit is a 5 Port DC power block
for the consolidation and distribution of DC power. Single or Three Phase Options.

Side-Nav_Image-01

MIL-STD-810F
Humidity | Altitude | Sand and Dust |
Shock and Vibration | Temperature

MIL-STD-461E
RE101 | RE102 | CE101 | CE102 | CE103

MIL-STD-882D
MIL-STD-1472F
MIL-STD-1474D
MIL-STD-1399-300B Type I
MIL-STD-1275

VDC Rackmount DC to DC Power Distribution PDU Designed to meet the Military Standards MIL STD 1275 – MIL STD 1399 – MIL STD 704 – MIL STD 461 – MIL STD 810

The VDC Rackmount DC to DC Power Distribution Unit is a 5 Port DC power block for the consolidation and distribution of DC power. Single or Three Phase Options.

Each PowergridM Power Distribution block allows for the power bus distribution or consolidation of a DC power flow at a 1:4 ratio and can be utilized to connect the consolidated DC power source to up to 4 PowergridM 800 Watts Ruggedized UPS or PowergridM UPS Battery Expansion systems. Each of the 4 output ports are supported by a independent push/pull breaker allowing DC power to each UPS/BXM to be disconnected from the primary DC power bus by the user as required. In addition, this block can be utilized to consolidate DC output power from the BXMs to a remote stack of PowergridM UPS systems and distribute that consolidated DC power to the UPS units at the distant end. The mounting brackets are designed to be removable or rotated either 90°/180°/270° to allow maximum mounting flexibility.

MIL STD 461 UPS | MIL STD 810 UPS
EMI / EMC – PowergridM UPS system has been designed to comply with all the radiated emissions, susceptibility and conductive emissions requirements of the applicable sections of MIL STD 461F. The following is a list of methods used for controlling emissions: RE102 | CE102 | CS101 | CS114 | CS115 | CS116 | RS103 DESIGNED TO MEET
Environmental MIL-STD-810G: Humidity, Altitude, Sand and Dust, Shock and Vibration, Temperature.

Highlights

• Allows for Consolidation of VAC Input Power from the Source to a Stack.
• Consolidates cable runs when extending the RPIM to a remote location.
• Individual Push/Pull Based Breakers for Each Equipment Connection.
• Remove and Rotate Mounting Brackets for Maximum Flexibility.
