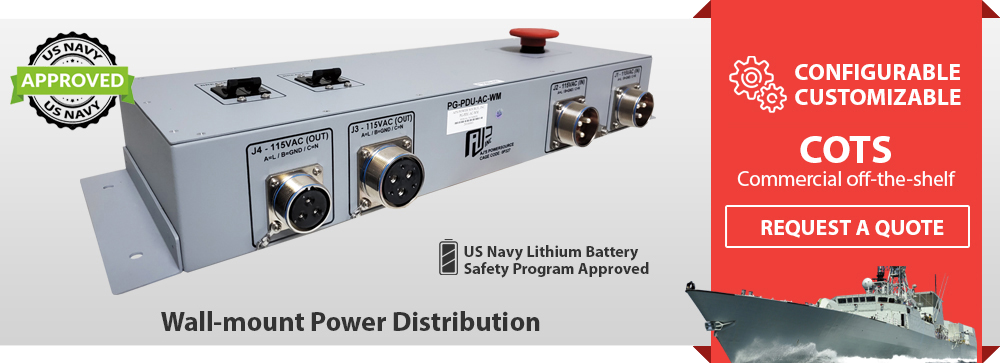

Wall-mount Power Distribution Unit (PDU)

The AJPS Wall-mount Power Distribution Unit provides User Interfaces for Electrical Connections including Input/Output lines, Circuit Breakers and an E-Stop

The AJPS Wall-mount Power Distribution Unit (PDU) can be located close to critical equipment and manned stations for ease of use and enhanced safety. The PDU provides User Interfaces for Electrical Connections including Input/Output lines, Circuit Breakers and an E-Stop.

Highlights

Rear Connectors:

  • AC Input 2 X MS3452L28-22P, A=Line, B=Ground, C=Neutral, D,E,F=No Connection
  • AC Output 2 X MS3452L28-22S, A=Line, B=Ground, C=Neutral, D,E,F=No Connection
  • Protection (circuit breakers) 2 x CBI Electric Model D-2AA4XBSAH5000BXXXXXXXWDVC2-X 50A ea
  • Size: 8.00”H x 22.05”W (+ Brackets) x 3.46”D
  • Weight: /=6 pounds
Ajs Power Source BackPlane System

Customized models available
