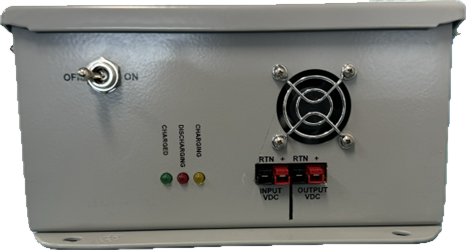

REAR VIEW
Highlights
•Ruggedized Half Rack 150 Watt DC UPS with a low weight of 15lbs
•Lithium Iron Phosphate battery with 30 minutes of battery hold up time
•DC Input 12VDC
•DC Output 24VDC
•Power Level 150 Watts
•Rugged Design
•Overload Protection
•Output Short Circuit Protection
•Over Temperature Protection
•Front to rear airflow
Military Half Rack Power Supplies | 24 Volt DC 150W

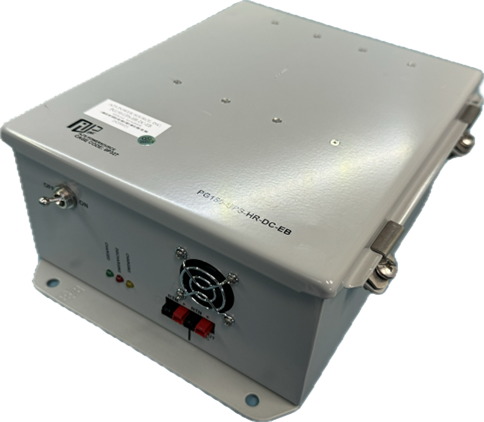

The PG150-UPS-HR-DC-EB is a Rugged Full Double Conversion Uninterruptible Power Supply Half Rack UPS (4.27” High) Half Rack (8.9” Wide) Chassis that is 10.31” in Length weighing in at 15 pounds.
The PG150 utilizes the same proven full double conversion design of other PowergridM models in a highly portable half rack configuration for use with small man portable/deployable systems. The PG150 has an embedded Lithium Iron Phosphate Battery module within excess of 30 minutes of hold time. The unit supports two UPS/Battery with a 24VDC output and 12VDC input. The unit is equipped with multiple protection features, including over load, output short circuit, and over temperature.
Military Half Rack Power Supplies
MIL STD 810G UPS / Environmental Specifications Ruggedization – PowergridM UPS system has been designed to comply with all the harsh environments, and requirements of the applicable sections of MIL STD 810G. Designed and built for high temperature range for operating and storage. Rugged for shock and vibration of MIL-STD-810G.
Environmental MIL-STD-810G: Humidity, Altitude, Sand and Dust, Shock and Vibration, Temperature.
Please, call us today! 813-996-2583 for more information about our Military Half Rack Power Supplies
Special Features
-
DC Output: Rated Voltage 24 +/-2% VDC, Rated Max. Current 6.25 Adc, Max. Rated Power 150 Watts, Run Time on Battery >/= 30 Minutes, Transfer Time to Battery Instant, On-Line conversion
DC Input: Voltage Range 12 (regulated) VDC, Efficiency (typical) ≥ 92 %
Isolation: Input to Output Yes
Internal Battery Module : Rating 28 Vdc, Ampacity 2.50 Ah, Type Lithium Iron Phosphate, Recharge Time 3 – 4 Hours to 95% after full discharge
Protection: Over Load Yes – restart needed to clear, Output Short Circuit Yes – restart needed to clear, Over Temperature Yes – restart needed to clear
DC Output: ASMPR45-1X2-RK (Anderson Power)
DC Input: ASMPR45-1X2-RK (Anderson Power)
Operating Temperature Range: –20 to +55* 0C
Storage Temperature Range: -40 to +70* 0C
Operating Humidity 95 non-condensing* %Altitude : 10,000 (Operating) / 40,000 (Non-Operating) * feet
Fungus :No fungus promoting materials used
Vibration : MIL-STD-810G, Method 514, Category 4 Truck/Trailer secured cargo and Category 11 Rail *
Functional Shock MIL-STD-810G, Method 516, Procedure II Transportation and Procedure V Crash Hazard *
Other Specifications: Cooling Front Panel Intake & Rear Exhaust Airflow, MTBF >100,000 (Calculated per MIL-HDBK-217) * Hours
Physical Properties:Dimensions 4.27H x 8.9W x 10.31D inch, Mounting Bracket – see drawing, Weight =/< 15 lbs., Material Aluminum, Color/Finish ANSI 61 gray powder coat * Designed to meet, formal report requires lab testing at additional expense
-
