PG2000-UPS-230
Highlights
• Ruggedized 1U 1200 Watts / 1500 VA weight in at 27 Lbs.
• Stack and Interconnect 1200/2400/3600/4800/6000 Watts.
• Hot Swap Battery @ 6 Lbs Each – 12+ Min Hold Time.
• Universal AC Input of 100-264 VAC & from 47-63, 400 Hz.
• 48VDC power input support.
• Computer Controlled Inverter Design.
• SNMP for Monitoring and Reporting (SNMP V3 Optional).
• Over Voltage Capacity for Managed In-Rush and Startup.
• Over Voltage and Over Temperature Protection Circuits.
• Lightning Protection with Safety Ground Connection.
• Military Tactical UPS.
1U Military Ruggedized Uninterruptible Power Supply | 1U Military Tactical UPS

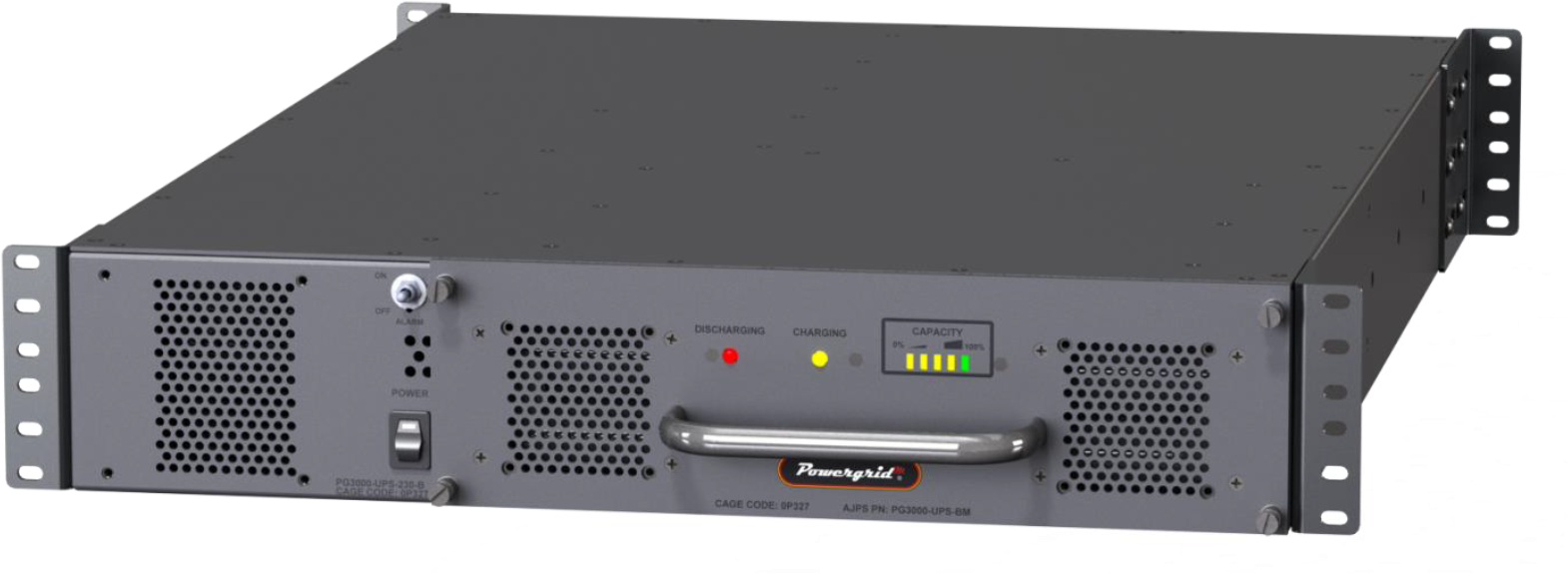

Rugged Mil Grade 3000 VA / 2400 watts UPS is a Full Double Conversion Rack Mount Tactical Uninterruptible Power Supply in a 2U (3.48” High) Rugged Chassis That is 24” in Length Weighing Less Than 50 Pounds.
The PowergridM technology is implemented with a Load Balancing Interconnect (LBI) design that allows up to four (4) of the PowergridM 3000 units to be interconnected to create a 2400, 4800, 7200, or 9600 Watts Uninterruptible Power Solution. The LBI interconnects the inverter and power circuits in each unit allowing them to work together to provide a fully meshed, load balanced and uninterruptible power grid for the attached systems. Each attached UPS will provide its share of the demanded power while ensuring frequency and power synchronization with its attached neighbors. With Stacking and Power Sharing cables attached, this system provides N+1 redundancy.
MIL STD 461 UPS | MIL STD 810 UPS
EMI / EMC – PowergridM UPS system has been designed to comply with all the radiated emissions, susceptibility and conductive emissions requirements of the applicable sections of MIL STD 461F. The following is a list of methods used for controlling emissions: RE102 | CE102 | CS101 | CS114 | CS115 | CS116 | RS103 DESIGNED TO MEET
Environmental MIL-STD-810G: Humidity, Altitude, Sand and Dust, Shock and Vibration, Temperature.
Special Features
-
AC Input Voltage: 100 – 264 VAC, 47 – 63, 400 Hz.
(Single, Dual, and Three Phase options available).
DC Input Voltage: 42-56 VDC (optional).
Battery Backup: 12 minutes at 25C, 80% Load.
Available Output Voltages: 120 or 230 VAC True Sine wave.
Output Frequency: 50Hz or 60Hz.
Harmonic Distortion: <2% with resistive load. Output Power: 1200 Watts / 1500 VA (Volt Amps).
Efficiency: 80%.
Startup Time: <30 Seconds. Status Monitoring & Reporting: SNMP (optional).Physical Dimensions: 1.73”H/17.1”W/23”D.
Cooling: Front to Rear based internal airflow.
Weight: 27 Lbs.
Altitude: 10,000 Ft Operating – 40,000 Ft Non-Operating.
Temperature: – 20 to +50C.
Humidity: 0-95% non-condensing.
Fungus: In accordance with MIL-STD-810G.
Sand & Dust: MIL-STD-810G (with optional filters).
Vibration: MIL-STD-810G.
Functional Shock: MIL-STD-810G – Test Reports Available. -
