Aenean convallis sapien nulla, et pretium dui luctus sed. Suspendisse lobortis est nibh, vel viverra libero lobortis sit amet. Vivamus pharetra pulvinar leo ut commodo. Maecenas dictum magna id risus fringilla, et ornare lorem consequat. Sed neque lorem, cursus in odio vitae, varius lobortis tortor. Maecenas sit amet orci leo. Vivamus nec sapien non nisi commodo aliquet. Nulla non dictum odio, vitae iaculis libero. Nulla eget pellentesque urna. Nullam scelerisque eros leo, quis sagittis dui suscipit sed. Vestibulum ante ipsum primis in faucibus orci luctus et ultrices posuere cubilia Curae; Pellentesque eleifend dolor quis feugiat porta. Morbi et nulla hendrerit, tincidunt libero in, molestie nibh.

MIL-STD-810F
Humidity | Altitude | Sand and Dust |
Shock and Vibration | Temperature

MIL-STD-461E
RE101 | RE102 | CE101 | CE102 | CE103

MIL-STD-882D
MIL-STD-1472F
MIL-STD-1474D
MIL-STD-1399-300B Type I
MIL-STD-1275

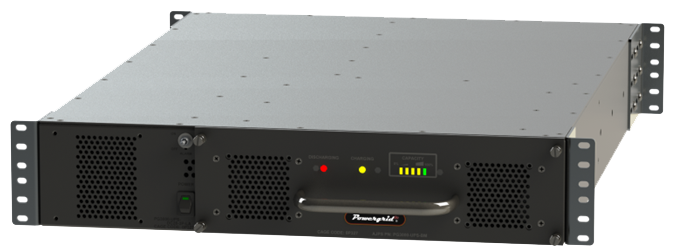

2U Military Ruggedized Uninterruptible Power Supply 3000 VA / 2000 Watts | 2U Military Tactical UPS

24

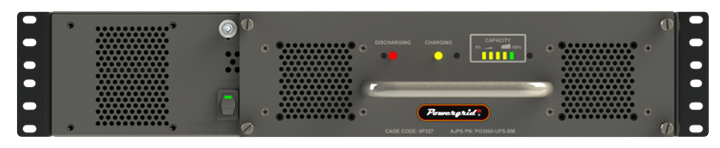

FRONT VIEW

24-front

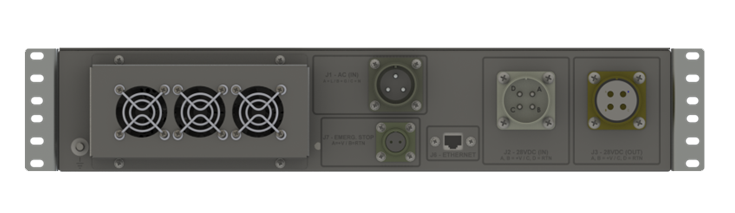

REAR VIEW

24-back

REQUEST A QUOTE DOWNLOAD DATA SHEET

Highlights

• Ruggedized 2U 2400 Watts / 3000 VA weight in at 50 Lbs.
• Available in 1/2/3 phase input power configurations.
• Stack and Interconnect Design 2400/4800/7200/9600 watts.
• Hot Swap Battery @ 12 Lbs Each – 12+ Min Hold Time.
• Universal AC Input of 100-264 VAC & from 47 – 63, 400 Hz,
• DC Input at 42 – 56 VDC.
• VAC Output Voltage of 120V 60 Hz / 230V 50 Hz.
• Dual Computer Controlled Inverter Design.
• Based Network for Power Management and Reporting.
• Over Voltage Capacity for Managed In-Rush and Start up.
• Over Voltage & Over Temperature Protection Circuits.
• Lightning Protection with Safety Ground Connection.

2U Military Ruggedized Uninterruptible Power Supply 3000 VA / 2000 Watts | 2U Military Tactical UPS

Rugged Mil Grade 3000 VA / 2000 watts UPS is a Full Double Conversion Rack Mount Tactical Uninterruptible Power Supply in a 2U (3.48” High) Rugged Chassis That is 24” in Length Weighing Less Than 50 Pounds.

The PowergridM technology is implemented with a Load Balancing Interconnect (LBI) design that allows up to four (4) of the PowergridM 3000 units to be interconnected to create a 2400, 4800, 7200, or 9600 Watts Uninterruptible Power Solution. The LBI interconnects the inverter and power circuits in each unit allowing them to work together to provide a fully meshed, load balanced and uninterruptible power grid for the attached systems. Each attached UPS will provide its share of the demanded power while ensuring frequency and power synchronization with its attached neighbors. With Stacking and Power Sharing cables attached, this system provides N+1 redundancy.

MIL STD 461 UPS | MIL STD 810 UPS
EMI / EMC – PowergridM UPS system has been designed to comply with all the radiated emissions, susceptibility and conductive emissions requirements of the applicable sections of MIL STD 461F. The following is a list of methods used for controlling emissions: RE102 | CE102 | CS101 | CS114 | CS115 | CS116 | RS103 DESIGNED TO MEET
Environmental MIL-STD-810G: Humidity, Altitude, Sand and Dust, Shock and Vibration, Temperature.

Special Features

Features-Table-1
StackingSystem-1
