Suitcase Military Ruggedized Uninterruptible Power Supply | Suitcase Military Tactical UPS | PG1500-UPS-SUIT

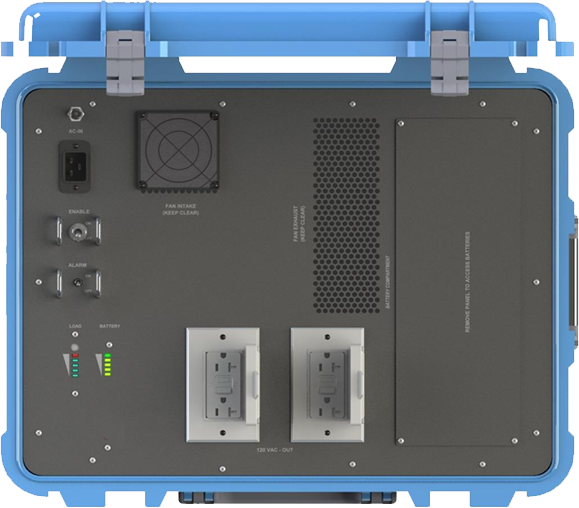

FRONT VIEW
REAR VIEW
Highlights
• Ruggedized Clam shell Design1100 Watts weight in at 50 Lbs.
• Multiple colors available
• Field Battery Replacement @ 6 Lbs. Each – 12+ Min Hold Time.
• Universal AC Input of 90-264 VAC & from 47-63, 400 Hz.
• Computer Controlled Inverter Design.
• Over Voltage Capacity for Managed In-Rush and Startup.
• Over Voltage and Over Temperature Protection Circuits.
• Lightning Protection with Safety Ground Connection.
• DOD/Military Tactical UPS.
Suitcase Military Ruggedized Uninterruptible Power Supply | Suitcase Military Tactical UPS | PG1500-UPS-SUIT
Ruggedized 1100 watts UPS is a Full Double Conversion Tactical Uninterruptible Power Supply in a 11.5”H/18”W/23”D Clam Shell style case, Weighing 50 Pounds.
The PowergridM technology is implemented with a Load Balancing Interconnect (LBI) design that allows up to five (5) of the PowergridM 1500 units to be interconnected to create a 1200, 2400, 3600, 4800, or 6000 Watts Uninterruptible Power Solution. The LBI interconnects the inverter and power circuits in each unit allowing them to work together to provide a fully meshed, load balanced and uninterruptible power grid for the attached systems. Each attached UPS will provide its share of the demanded power while ensuring frequency and power synchronization with its attached neighbors.
MIL STD 461 UPS | MIL STD 810 UPS
EMI / EMC – PowergridM UPS system has been designed to comply with all the radiated emissions, susceptibility and conductive emissions requirements of the applicable sections of MIL STD 461F. The following is a list of methods used for controlling emissions: RE102 | CE102 | CS101 | CS114 | CS115 | CS116 | RS103 DESIGNED TO MEET
Environmental MIL-STD-810G: Humidity, Altitude, Sand and Dust, Shock and Vibration, Temperature.
Special Features
-
AC Input Voltage: 90 – 264 VAC, 47 – 63, 400 Hz. Single Phase.
Battery Backup: > 40 minutes at 25C, 80% Load.
Available Output Voltages: 110 VAC True Sine wave.
Output Frequency: 50Hz or 60Hz.
Harmonic Distortion: <2% with resistive load. Output Power: 1100 Watts. Efficiency: 80%.
Startup Time: <30 Seconds. Status Monitoring & Reporting: SNMP (optional). Physical Dimensions: 11.5”H/18”W/23”D.
Cooling: Top to top airflow for cooling of internal components.Weight: 50 Lbs.
Altitude: 10,000 Ft Operating – 40,000 Ft Non-Operating.
Temperature: – 20 to +50C.
Humidity: 0-95% non-condensing.
Fungus: In accordance with MIL-STD-810G.
Sand & Dust: MIL-STD-810G (with optional filters).
Vibration: MIL-STD-810G.
Functional Shock: MIL-STD-810G – Test Reports Available. -
