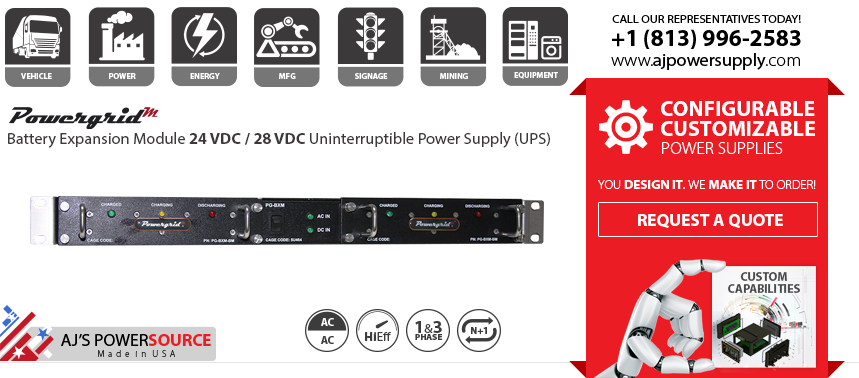

The PG-BXM-24 is a rugged Rackmount 24 VDC – 28 VDC Battery Expansion
Module designed to augment the Powergrid M 800 Watts / VA Standalone UPS.
Protection | Energy & Standby | System Reliability |
Operations & Safety | Maintenance
Health & Safety | Cybersecurity | Rain Nozzles |Temperature Control | Environment
TUV & CE Standards
Safety & Quality | OSHA and SCC regulation |Electrical & Fire Safety
* Units are designed to meet these standards but, each unit must be tested at system level. Shielded cables and line filters required. Read more
Industrial Battery Expansion Module 24 VDC / 28 VDC Uninterruptible Power Supply UPS
Industrial Rugged Rackmount 24V Battery Expansion Module Designed to Augment the PowergridM 800 Watts / VA Standalone UPS. The BXM Contains a Compliment of 6 Lithium Iron Phosphate Battery Packs Configured in the Cold PakTM Design.
The BXM is a 1U (1.73” High) rugged chassis that is 21.75” in length weighing 20 pounds. The BXM provides an additional 27+ minutes of battery support for the PowergridM Standalone UPS and can also be stacked up to 10 units to create and large capacity battery “cell”. The BXM can be connected directly to a PowergridM UPS, or when stacked, can be connected to up to 3 PowergridM UPS systems utilizing the various available VDC Power Distribution block and Cables.
• Connects to any 800 UPS via VDC Input Connector.
• Replicates the VDC Input Connector for DC power source.
• Hosts 2 removable Cold PakTM battery trays each containing 3 PowergridM battery modules.
• LED Operational Status Indicators for each battery tray.
• Same physical 1U size chassis package as the 800 UPS.
• Each BXM provides a minimum of 27+ min extended power.
• MIL-STD 1275 compliant for VDC charging of batteries.
1U 800 watts UPS – Rackmount Stackable to:
800 watts UPS | 1600 watts UPS | 2400 watts UPS | 3200 watts UPS
1U 1000 watts UPS – Rackmount Stackable to:
1000 watts UPS | 2000 watts UPS | 3000 watts UPS | 4000 watts UPS
1U 1500 VA UPS – Rackmount Stackable to:
1500 VA UPS | 3000 VA UPS | 4500 VA UPS | 6000 VA UPS
1U 1200 watts UPS – Rackmount Stackable to:
1200 watts UPS | 2400 watts UPS | 3600 watts UPS | 4800 watts UPS
2U 3000 VA UPS – Rackmount Stackable to:
3000 VA UPS | 6000 VA UPS | 9000 VA UPS
2U 2400 watts UPS – Rackmount Stackable to:
2400 watts UPS | 4800 watts UPS | 7200 watts UPS
AC Input Voltage: 100 – 264 VAC, 47-63Hz, (400 Hz @115V only).
DC Input Voltage: 20 – 32 VDC (22VDC Start).
Amperage: 15.6 Ah.
Battery Backup: 27+ Minutes at 25C, 80% Load.
