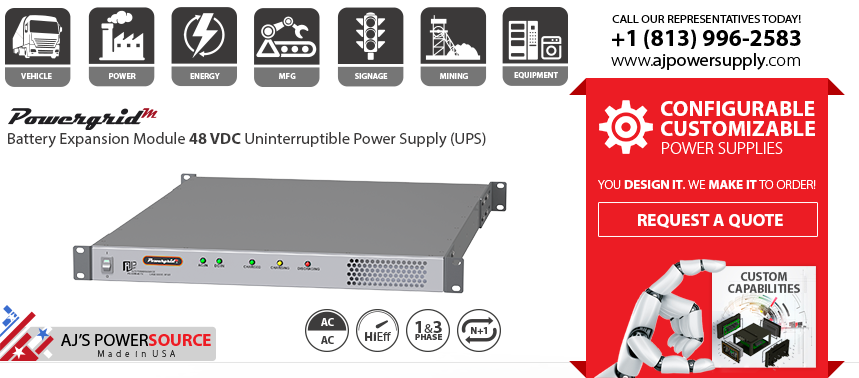

Industrial Battery Expansion Module 48 VDC Output – Industrial Battery Backup System UPS
The PG-BXM-48 is a Rugged Rackmount 48V Battery Expansion Module Designed to Augment the PowergridM 1500 VA or 3000 VA UPS Systems. The BXM Contains a Compliment of 8 Lithium Iron Phosphate Battery Packs Configured in the Cold PakTM Design. Industrial Battery Backup System UPS
The BXM is a 1U (1.73” High) rugged chassis that is 24” in length weighing 20 pounds. The BXM provides an additional 30+ minutes (UPS Model Dependant) of battery support for the PowergridM 1500 VA Standalone UPS and 3000 VA Standalone UPS. It can be stacked up to 10 units to create and large capacity battery “cell”. The BXM can be connected directly to a PowergridM UPS, or when stacked, can be connected to up to 4 PowergridM 1500 or 2 PowergridM 3000 UPS systems utilizing the various available VDC Power Distribution Block and Cables.
• Connects to any 1500/3000 UPS via VDC Input Connector.
• Replicates the VDC Input Connector for DC power source.
• Hosts 1 removable Cold Pack Battery tray each containing 8 PowergridM battery modules.
• LED Operational Status Indicators for each battery tray.
• Same physical 1U size chassis as the 1500 VA UPS.
• Each BXM provides a minimum of 30+ min (Model Dependent).
1U 800 watts UPS – Rackmount Stackable to:
800 watts UPS | 1600 watts UPS | 2400 watts UPS | 3200 watts UPS
1U 1000 watts UPS – Rackmount Stackable to:
1000 watts UPS | 2000 watts UPS | 3000 watts UPS | 4000 watts UPS
1U 1500 VA UPS – Rackmount Stackable to:
1500 VA UPS | 3000 VA UPS | 4500 VA UPS | 6000 VA UPS
1U 1200 watts UPS – Rackmount Stackable to:
1200 watts UPS | 2400 watts UPS | 3600 watts UPS | 4800 watts UPS
2U 3000 VA UPS – Rackmount Stackable to:
3000 VA UPS | 6000 VA UPS | 9000 VA UPS
2U 2400 watts UPS – Rackmount Stackable to:
2400 watts UPS | 4800 watts UPS | 7200 watts UPS
AC Input Voltage: 100 – 264 VAC, 47-63Hz, (400 Hz @115V only).
DC Input Voltage: 41 – 56 VDC. (Optional).
Amperage: 10.4 Ah.
Battery Backup: 30+ Minutes at 25C, 80% Load.
