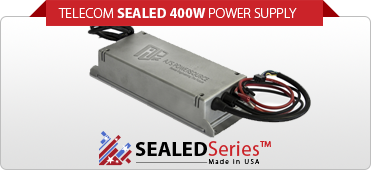

TELECOM-SEALED SeriesTM 24V AC DC Power Supply

Weatherproof 24V AC DC Power Supply that provide High Reliability with off the shelf
availability and affordability in a product that performs under extreme conditions,

IEEE Standards
Protection | Energy & Standby | System Reliability |
Operations & Safety | Maintenance

UL Standards
Health & Safety | Cybersecurity | Rain Nozzles |
Temperature Control | Environment

TUV & CE Standards
Safety & Quality | OSHA and SCC regulation |
Electrical & Fire Safety

* Units are designed to meet these standards but, each unit must be tested at system level. Shielded cables and line filters required. Read more

Side-Nav_Image-03

Weatherproof 24V AC DC Power Supply, Weatherproof 24V Power Supply, Weatherproof Sealed 24V Power Supply, Sealed 24V Power Supply

Our Weatherproof 24V AC DC Power Supply is an environmentally sealed, ultra-high efficiency family of Weatherproof Sealed 24V Power Supply

The TELECOM-SEALED SeriesTM includes Weatherproof 24V AC DC Power Supply that provide High Reliability with off the shelf availability and affordability in a product that performs under extreme conditions, even submerged under water or exposed to 70C operating temperatures!

Our Weatherproof 24V AC DC Power Supply provides reliable, cost effective power conversion. The TELECOM-SEALED SeriesTM offers a highly reliable standard Weatherproof off the shelf solution while providing short lead times in a rugged design. The TELECOM-SEALED SeriesTM from AJPS operates from wide range AC input (85 – 305VAC) as well as DC and is available in standard output voltages of 12, 24 and 48 VDC. Each product is Hermetically Sealed and carries an IP65 rating for ingress of dirt/dust and water. The products are cooled via natural conduction/convection (no air flow needed) and supported by ultra High Efficiency up to 94%. Units can be operated in series for higher power applications.

Highlights

  • Sealed enclosure, IP65 ingress protection
  • High Efficiency (up to 94%)
  • Universal input voltage range (85 – 305VAC)
  • DC input also available
  • Input surge current limiting
  • 400 Watt Max Power (parallelable for higher power)
  • 12, 24 and 48 VDC standard output voltages
  • Low stand-by power consumption (<0.5 W)
  • Low earth / touch leakage current
  • Active PFC, EN61000-3-2 compliant (Class C, >25% load)
  • OV, OC and SC protections
  • Stand-by +5Vdc 2A and Auxiliary +12Vdc 1A outputs
  • Remote On / Off signal
  • Over temperature protections

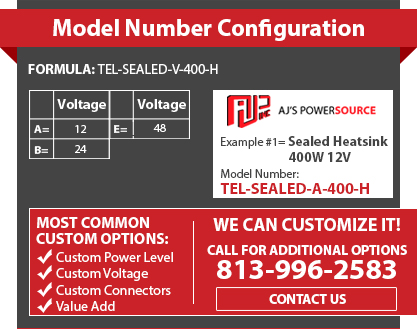

Telecom-Config-Table-2
