The AERO-UPS SeriesTM – Is a rugged 1500 VA / 1200 Watts full double conversion Rack mount
Uninterruptible Power Supply UPS in a 1 Unit rugged chassis that is less than 27 pounds.
Humidity | Altitude | Sand and Dust |
Shock and Vibration | Temperature
RE101 | RE102 | CE101 | CE102 | CE103
* Units are designed to meet these standards but, each unit must be tested at system level. Shielded cables and line filters required. Read more
Aerospace Ruggedized 1500VA / 1200 Watts Uninterruptible Power Supply. Aerospace Ruggedized UPS Stackable up to 6000 Watts/VA
Aerospace Ruggedized 1500 VA / 1200 watts UPS is a Full Double Conversion Rack mount Uninterruptible Power Supply in a 1U (1.73” High) Chassis That is 23” in Length Weighing Less Than 27 Pounds.

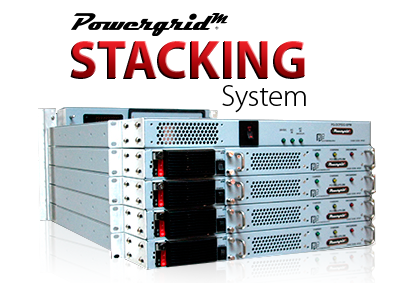

The PowergridM technology is implemented with a Load Balancing Interconnect (LBI) design that allows up to five (5) of the PowergridM 1500 units to be interconnected to create a 1200, 2400, 3600, 4800, or 6000 Watts Uninterruptible Power Solution. The LBI interconnects the inverter and power circuits in each unit allowing them to work together to provide a fully meshed, load balanced and uninterruptible power grid for the attached systems. Each attached UPS will provide its share of the demanded power while ensuring frequency and power synchronization with its attached neighbors.
MIL STD 461 UPS | MIL STD 810 UPS
EMI / EMC – PowergridM UPS system has been designed to comply with all the radiated emissions, susceptibility and conductive emissions requirements of the applicable sections of MIL STD 461F. The following is a list of methods used for controlling emissions: RE102 | CE102 | CS101 | CS114 | CS115 | CS116 | RS103 DESIGNED TO MEET
Environmental MIL-STD-810G: Humidity, Altitude, Sand and Dust, Shock and Vibration, Temperature.
• Ruggedized 1U 1200 Watts / 1500 VA weight in at 27 Lbs.
• Stack and Interconnect 1200/2400/3600/4800/6000 Watts.
• Hot Swap Battery @ 6 Lbs Each – 12+ Min Hold Time.
• Field Replaceable AC Input Power Module.
• Universal AC Input of 100-264 VAC & from 47-63, 400 Hz.
• 48VDC power input support.
• Computer Controlled Inverter Design.
• SNMP for Monitoring and Reporting (SNMP V3 Optional).
• Over Voltage Capacity for Managed In-Rush and Startup.
• Over Voltage and Over Temperature Protection Circuits.
• Lightning Protection with Safety Ground Connection.
1U 800 watts UPS – Rack mount Stackable to:
800 watts UPS | 1600 watts UPS | 2400 watts UPS | 3200 watts UPS
1U 1000 watts UPS – Rack mount Stackable to:
1000 watts UPS | 2000 watts UPS | 3000 watts UPS | 4000 watts UPS
1U 1500 VA UPS – Rack mount Stackable to:
1500 VA UPS | 3000 VA UPS | 4500 VA UPS | 6000 VA UPS
1U 1200 watts UPS – Rack mount Stackable to:
1200 watts UPS | 2400 watts UPS | 3600 watts UPS | 4800 watts UPS
2U 3000 VA UPS – Rack mount Stackable to:
3000 VA UPS | 6000 VA UPS | 9000 VA UPS
2U 2400 watts UPS – Rack mount Stackable to:
2400 watts UPS | 4800 watts UPS | 7200 watts UPS
AC Input Voltage: 100 – 264 VAC, 47 – 63, 400 Hz.
(Single, Dual, and Three Phase options available).
DC Input Voltage: 42-56 VDC (optional).
Battery Backup: 12 minutes at 25C, 80% Load.
Available Output Voltages: 120 or 230 VAC True Sine wave.
Output Frequency: 50Hz or 60Hz.
Harmonic Distortion: <2% with resistive load. Output Power: 1200 Watts / 1500 VA (Volt Amps). Efficiency: 80%.
Startup Time: <30 Seconds. Status Monitoring & Reporting: SNMP (optional).
Physical Dimensions: 1.73”H/17.1”W/23”D.
Cooling: Front to Rear based internal airflow.
Weight: 27 Lbs.
Altitude: 10,000 Ft Operating – 40,000 Ft Non-Operating.
Temperature: – 20 to +50C.
Humidity: 0-95% non-condensing.
Fungus: In accordance with MIL-STD-810G.
Sand & Dust: MIL-STD-810G (with optional filters).
Functional Shock: MIL-STD-810G – Test Reports Available.
