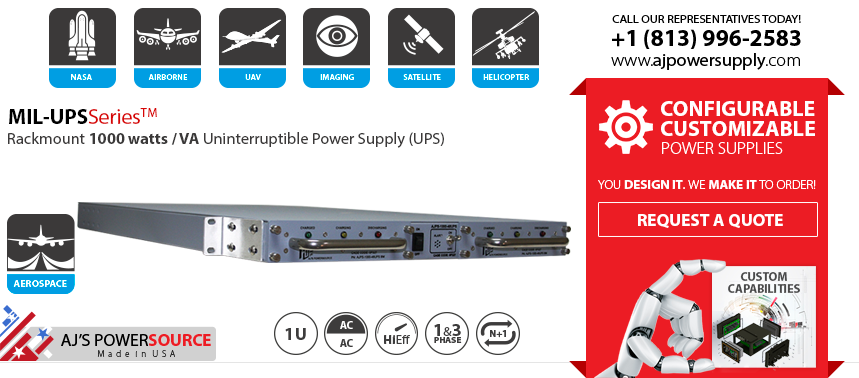

The AERO-UPS SeriesTM – Is a rugged 1000 Watts / VA full double conversion Rack mount
Uninterruptible Power Supply UPS in a 1 Unit rugged chassis that is less than 30 pounds.
Humidity | Altitude | Sand and Dust |
Shock and Vibration | Temperature
RE101 | RE102 | CE101 | CE102 | CE103
* Units are designed to meet these standards but, each unit must be tested at system level. Shielded cables and line filters required. Read more
Aerospace Tactical 1000 watts/VA Uninterruptible Power Supply. Aerospace Tactical UPS Stackable up to 4000 watts/VA
Aerospace Tactical 1000 watts/VA UPS is a Full Double Conversion 19” Rack Mount Uninterruptible Power Supply in a 1U (1.73” High) Chassis That is 26” in Length Weighing Less Than 30 Pounds.
The PowergridM technology is implemented with a Load Balancing Interconnect (LBI) design that allows up to four (4) of the PowergridM 1000 units to be interconnected to create a 1000, 2000, 3000 or 4000 Watts Uninterruptible Power Solution. The LBI interconnects the inverter and power circuits in each unit allowing them to work together to provide a fully meshed, load balanced and uninterruptible PowergridM for the attached systems. The PG1000 does not have a VDC input (Battery Expansion Capability) because it utilizes the available space and extended length to host larger Battery Packs to provide additional hold time for critical applications. 1U Ruggedized Rack mount Lightweight Uninterruptible Power Supply
MIL STD 461 UPS | MIL STD 810 UPS
EMI / EMC – PowergridM UPS system has been designed to comply with all the radiated emissions, susceptibility and conductive emissions requirements of the applicable sections of MIL STD 461F. The following is a list of methods used for controlling emissions: RE102 | CE102 | CS101 | CS114 | CS115 | CS116 | RS103 DESIGNED TO MEET
Environmental MIL-STD-810G: Humidity, Altitude, Sand and Dust, Shock and Vibration, Temperature.
• Ruggedized 1U 1000 Watts/VA weighing less than 30 Lbs.
• Stack and Interconnect Design 1000/2000/3000/4000 Watts.
• Dual Hot Swap Battery. 6 Lbs Each – 15+ Min Hold Time.
• Field Replaceable AC Input Power Module.
• Universal AC Input of 100-264 VAC & from 47 – 63, 400 Hz.
• VAC Output Voltage of 120V 60 Hz.
• Dual Computer Controlled Inverter N+1 Design.
• Over Voltage Capacity for Managed In-Rush and Start up.
• Over Voltage and Over Temperature Protection Circuits.
• Audible Power Loss Alarm with Enable/Disable Switch.
• Lightning Protection with Safety Ground Connection.
1U 800 watts UPS – Rack mount Stackable to:
800 watts UPS | 1600 watts UPS | 2400 watts UPS | 3200 watts UPS
1U 1000 watts UPS – Rack mount Stackable to:
1000 watts UPS | 2000 watts UPS | 3000 watts UPS | 4000 watts UPS
1U 1500 VA UPS – Rack mount Stackable to:
1500 VA UPS | 3000 VA UPS | 4500 VA UPS | 6000 VA UPS
1U 1200 watts UPS – Rack mount Stackable to:
1200 watts UPS | 2400 watts UPS | 3600 watts UPS | 4800 watts UPS
2U 3000 VA UPS – Rack mount Stackable to:
3000 VA UPS | 6000 VA UPS | 9000 VA UPS
2U 2400 watts UPS – Rack mount Stackable to:
2400 watts UPS | 4800 watts UPS | 7200 watts UPS
AC Input Voltage: 100 – 264 VAC, 47 – 63, 400 Hz.
(Single, Dual, and Three Phase options available).
Battery Backup: 15+ minutes at 25C, 80% Load.
Available Output Voltages: 120 or 230 VAC True Sine wave.
Output Frequency: 50Hz or 60Hz.
Harmonic Distortion: <2% with resistive load. Output Power: 1000 Watts.
Startup Time: <30 Seconds. Physical Dimensions: 1.73”H/17.1”W/26”D.
Cooling: Rear panel based internal airflow.
Weight: 30 Lbs.
Altitude: 10,000 Ft Operating – 40,000 Ft Non-Operating.
Temperature: – 20 to +50C.
Humidity: 0-95% non-condensing.
Fungus: In accordance with MIL-STD-810G.
Sand & Dust: MIL-STD-810G (with optional filters).
Functional Shock: MIL-STD-810G.
