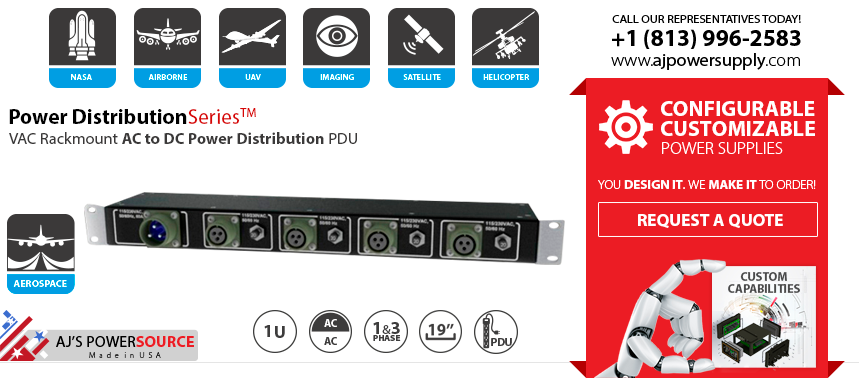

The VAC Rack mount AC to DC Power Distribution Unit is a 5 Port AC power block
for the consolidation and distribution of AC input power. Single or Three Phase Options.
Humidity | Altitude | Sand and Dust |
Shock and Vibration | Temperature
RE101 | RE102 | CE101 | CE102 | CE103
* Units are designed to meet these standards but, each unit must be tested at system level. Shielded cables and line filters required. Read more
Aerospace VAC Rack mount AC to DC Power Distribution PDU. Mil Aero VAC AC to DC Power Distribution Unit
Aerospace VAC Rack mount AC to DC Power Distribution Unit is a 5 Port AC power block for the consolidation and distribution of AC input power. Single or Three Phase Options.
Each PowergridM Power Distribution block allows for the power bus distribution or consolidation of an AC power flow at a 1:4 ratio and can be utilized to connect up to four PowergridM Ruggedized UPS or the PowergridM UPS Battery Expansion Module systems to a single AC power source. Each of the four output ports (P2-P5) are supported by a independent push/pull breaker allowing primary power to each UPS or Battery Expansion Module to be disconnected from the primary power bus by the user as required. The mounting brackets are designed to be removable or rotated either 90°/180°/270° to allow maximum mounting flexibility. This unit can also be utilized to consolidate VAC outputs of a stack of PowergridM UPS units and provide long line connection for a remote RPIM.
MIL STD 461 UPS | MIL STD 810 UPS
EMI / EMC – PowergridM UPS system has been designed to comply with all the radiated emissions, susceptibility and conductive emissions requirements of the applicable sections of MIL STD 461F. The following is a list of methods used for controlling emissions: RE102 | CE102 | CS101 | CS114 | CS115 | CS116 | RS103 DESIGNED TO MEET
Environmental MIL-STD-810G: Humidity, Altitude, Sand and Dust, Shock and Vibration, Temperature.
• Allows for Consolidation of VAC Input Power from the Source to a Stack.
• Consolidates cable runs when extending the RPIM to a remote location.
• Individual Push/Pull Based Breakers for Each Equipment Connection.
• Remove and Rotate Mounting Brackets for Maximum Flexibility.
