The AERO-PWR SeriesTM is a 1U Power Supply Providing Up to 4000 Watts in a Quad Output.
Cost effective AC to DC, DC to DC rack mount power solutions.
Humidity | Altitude | Sand and Dust |
Shock and Vibration | Temperature
RE101 | RE102 | CE101 | CE102 | CE103
* Units are designed to meet these standards but, each unit must be tested at system level. Shielded cables and line filters required. Read more

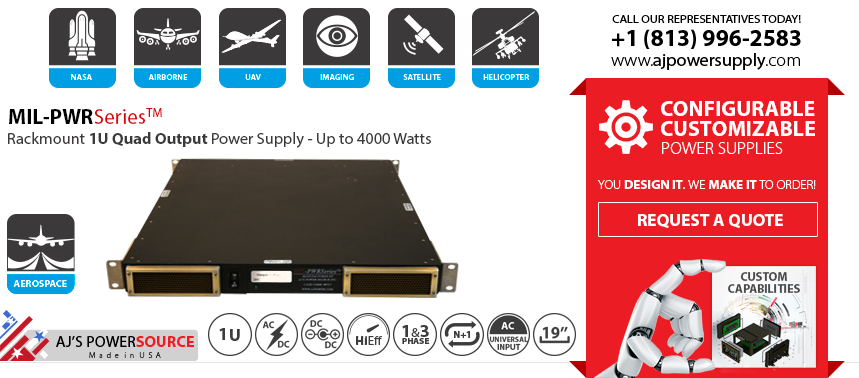

1U COTS Configurable Quad Output Rack Mount Power Supply 4000 watts Designed for Airborne Application and more. Designed to Meet MIL-STD-704
The MIL-PWR SeriesTM is a 1U Power Supply Providing Up to 4000 Watts in a Quad Output That is Designed to Meet MIL-704-STD Airborne applications. Available in high AC input Wild Frequencies of 400Hz & 800Hz Power Supply.
The MIL-PWR SeriesTM family of products provides reliable, cost effective AC to DC, DC to DC rack mount power solutions. The MIL-PWR SeriesTM offers a highly reliable standard commercial off the shelf (COTS) solution while providing shortened lead times in a rugged design. The output power levels range from 0-10,000 watts in a 1U-3U standard 19” rack mount configuration. The universal AC input of 90-264VAC can be either single or three phase for your configuration. Standard output options are available with a factory adjustable +/-10% of 3.3V, 5V, 12V, 24V, 28V & 48V (custom output voltages are available). The front to back airflow allows for cooling through the EMI covers and are easily removed and cleaned. The chassis is rated and designed for radiated and conducted EMI emissions. The chassis is designed for MIL-STD-810 shock, vibration, extended temperature & humidity. Pluggable options are available for use with the Backplane Modules (BPM).
• 1U (0 to 4000) Watts Rack Mount Power Supply
• Universal VAC input voltage range (90-264)
• Wide input Frequency Range (47-440Hz)
• Single or Three Phase options
• High efficiency up to 90% across all voltages
• Wide Operating/Non-Operating Temperature Range
• Standard 19” Rack Mount Configurations
• Internal N+1 Redundancy Options
• Overvoltage/Overvoltage protection
• Over temperature protection
• Shortened Lead Times
Input Voltage : VAC – 85-264, 47-63Hz
Efficiency: 85 % Typical
Hold Up Time: mS >16 mS at 80% Load
Operating Temperature: 0 to 50ºC Standard or –20 to 70ºC Available
Storage Temperature: -20 to 70ºC all Modules
Load Regulation: 1% Standard
Line Regulation: 1% Standard
Thermal Protection: Standard – Over Temperature Shut down on each Output
Humidity: 5-95% Non-Condensing
Altitude: 10,000 Ft
OVP %: <150% of Rated Output
