AERO-PWR SeriesTM 2U Configurable Triple Output

The AERO-PWR SeriesTM is a 2U Power Supply Providing Up to 8000 Watts in a Triple Output.
Cost effective AC to DC, DC to DC rack mount power solutions.

Humidity | Altitude | Sand and Dust |
Shock and Vibration | Temperature

RE101 | RE102 | CE101 | CE102 | CE103


* Units are designed to meet these standards but, each unit must be tested at system level. Shielded cables and line filters required. Read more

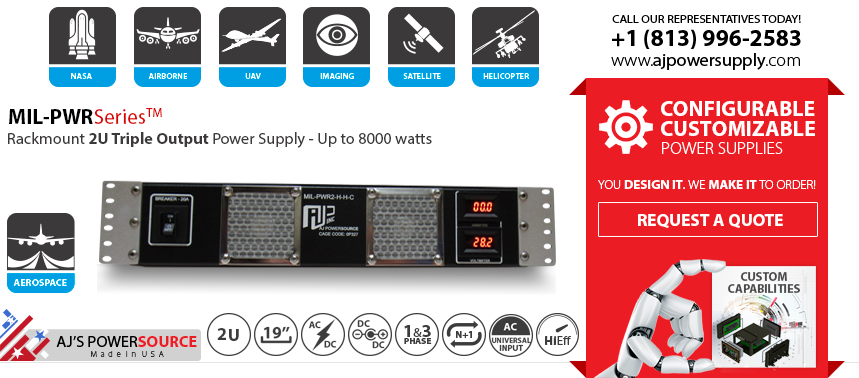

2U COTS Configurable Triple Output Rack Mount Power Supply 8000 watts – Designed for Avionics Applications and more. Available in high AC input Wild Frequencies of 400Hz & 800Hz Power Supply

The MIL-PWR SeriesTM is a 2U Rack Mount Power Supply Providing Up to 8000 Watts in a Triple Output Configuration That is Designed for Avionics Applications. Single or Three Phase Options.

The MIL-PWR SeriesTM family of products provides reliable, cost effective AC to DC, DC to DC rack mount power solutions. The MIL-PWR SeriesTM offers a highly reliable standard commercial off the shelf (COTS) solution while providing shortened lead times in a rugged design. The output power levels range from 0-10,000 watts in a 1U-3U standard 19” rack mount configuration. The universal AC input of 90-264VAC can be either single or three phase for your configuration. Standard output options are available with a factory adjustable +/-10% of 3.3V, 5V, 12V, 24V, 28V & 48V (custom output voltages are available). The front to back airflow allows for cooling through the EMI covers and are easily removed and cleaned. The chassis is rated and designed for radiated and conducted EMI emissions. The chassis is designed for MIL-STD-810 shock, vibration, extended temperature & humidity. Pluggable options are available for use with the Backplane Modules (BPM).


• 2U (0 to 8000) Watts Rack Mount Power Supply
• Universal VAC input voltage range (90-264)
• Wide input Frequency Range (47-440Hz)
• Single or Three Phase options.
• High efficiency up to 90% across all voltages
• Wide Operating/Non-Operating Temperature Range
• Standard 19” Rack Mount Configurations
• Internal N+1 Redundancy Options
• Overvoltage/Overvoltage protection
• Over temperature protection
• Shortened Lead Times
