The AERO – Power Distribution SeriesTM is a Aerospace Circular Connector Power Distribution
Utilized for the Connection of User Equipment to a Single PowergridM UPS System.
Humidity | Altitude | Sand and Dust |
Shock and Vibration | Temperature
RE101 | RE102 | CE101 | CE102 | CE103
* Units are designed to meet these standards but, each unit must be tested at system level. Shielded cables and line filters required. Read more
Aerospace Circular Connector Power Distribution. Aerospace Remote Power Interconnect Standard

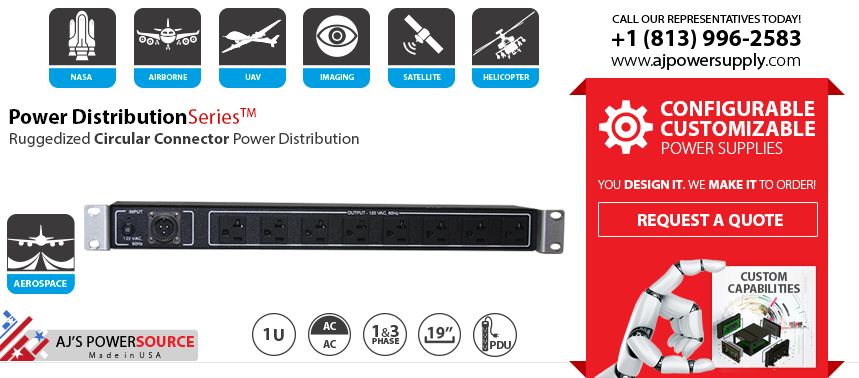

The Ruggedized PG-PRIM-STD is a Aerospace Circular Connector Power Distribution Utilized for the Connection of User Equipment to a Single PowergridM UPS System. Single or Three Phase Options.
Each PowergridM Power Distribution unit is equipped with 8 standard NEMA 5-15P connections for interconnecting user equipment and one male MIL style connector for the power connection to the single PowergridM UPS system. Each of the user equipment ports is equipped with an independent power breaker allowing the user to disconnect power to any one of the equipment power connections as required. In addition, this unit is equipped with one primary power breaker that will disengage power to all user equipment ports as needed. The mounting brackets are designed to be removable or rotated either 90°/180°/270° to allow maximum mounting flexibility.
MIL STD 461 UPS | MIL STD 810 UPS
EMI / EMC – PowergridM UPS system has been designed to comply with all the radiated emissions, susceptibility and conductive emissions requirements of the applicable sections of MIL STD 461F. The following is a list of methods used for controlling emissions: RE102 | CE102 | CS101 | CS114 | CS115 | CS116 | RS103 DESIGNED TO MEET
Environmental MIL-STD-810G: Humidity, Altitude, Sand and Dust, Shock and Vibration, Temperature.
• Push/Pull Master Breaker for Power Disconnect for All Connections.
• Remove and Rotate Mounting Brackets for Maximum Flexibility.
• 8 User Equipment Connections With Selectable Connector Types.
• 1 Primary Power Connection for PowerGridM UPS Connect.
