The AERO-INV SeriesTM family of inverter products provides reliable, cost effective
DC to AC power conversion in a 500 watts solution and has no forced air cooling.
Humidity | Altitude | Sand and Dust |
Shock and Vibration | Temperature
RE101 | RE102 | CE101 | CE102 | CE103
* Units are designed to meet these standards but, each unit must be tested at system level. Shielded cables and line filters required. Read more

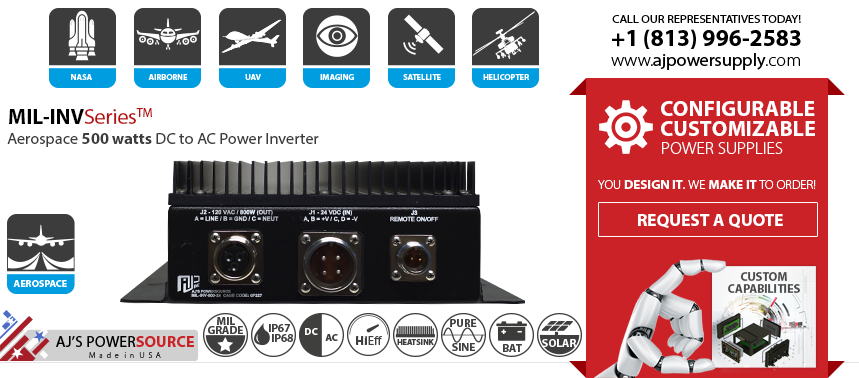

COTS Ruggedized Aerospace Tactical DC to AC 500 Watts 24V Power Inverter. Submersible IP67 IP 68 Waterproof
The AERO-INV SeriesTM is a COTS Aerospace Tactical DC to AC 500 Watt 24V Inverter Designed and Tested for MIL-STD-461, MIL-STD-704, MIL-STD-810. Custom Inverter Options Available.
The AERO-INV SeriesTM family of inverter products provides reliable, cost effective DC to AC power conversion in a 500 watt solution and has no forced air cooling. The heat produced by the internal power conversion is removed by the exterior cooling fins. Options are available with 12VDC, 24VDC & 48VDC input ranges with either a True Sine Wave or Modified Sine 120VAC or 230VAC output. The fully sealed enclosure will ensure that sand, dust, debris, rain & other environmental conditions will not impact the functionality of the inverter. The ruggedized mechanical design will meet drop, shock & vibration standards of MIL-STD-810F and continue to perform as specified.
The AERO-INV SeriesTM of high reliability inverters offers DC to AC solutions for your system needs. Standard commercial off the shelf (COTS) part number solutions provides shorter lead times while maintaining the rugged design. The utilization of industry standard MIL Circular Connectors allows for readily available off the shelf components. Whether your application calls for in house or field use, the AERO-INV SeriesTM is an easy choice.
• Multiple DC input voltages available (12, 24, 28, 48).
• Environmentally Sealed Chassis and Connectors.
• 120VAC & 230VAC Output.
• Pure/True Sine Wave.
• Multiple mounting configurations.
• Custom chassis options available.
Power Current Capability: 500 Watts
Output Voltage: 120VAC or 230 VAC
Input Voltage: 12, 24 or 48VDC
Output Sinewave: Pure or True Sine
Efficiency: Up to 92%
No load Current: < 0.75A
Operating Temperature: -20 to +50C
Enclosure Rating: IP68 Submersible Environmentally sealed
Output connectors: Military Circular
Over Temperature Protection: Yes
Over Load Protection: Yes
Battery Input Protection: Yes
