AERO – Power Distribution SeriesTM - Interconnect LBI

Remote Power Interconnect LBI Transit Case is Utilized for the Connection of User
Equipment to up to 4 PowergridM UPS systems. Single or Three Phase Options.

MIL-STD-810F
Humidity | Altitude | Sand and Dust |
Shock and Vibration | Temperature

MIL-STD-461E
RE101 | RE102 | CE101 | CE102 | CE103

MIL-STD-882D
MIL-STD-1472F
MIL-STD-1474D

* Units are designed to meet these standards but, each unit must be tested at system level. Shielded cables and line filters required. Read more

Side-Nav_Image-03

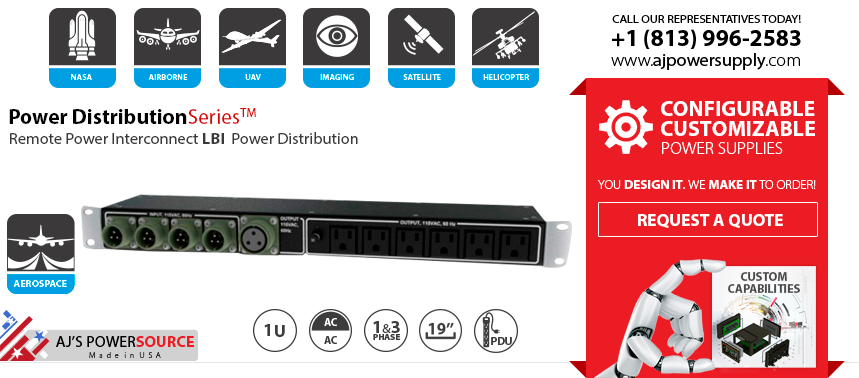

Aerospace Transit Case Power Distribution. Aerospace Remote Power Interconnect LBI Power Distribution Unit

Aerospace Remote Power Interconnect LBI Transit Case Power Supply Power Distribution is Utilized for the Connection of User Equipment to up to 4 PowergridM UPS systems. Single or Three Phase Options.

Each PowergridM Power Distribution unit is equipped with 6 standard NEMA 5-15P connections for interconnecting user equipment and 4 male MIL-style connectors for the power connection to up to 4 PowergridM UPS systems. The unit also hosts one MIL-style Female connector for the interconnection or Daisy Chaining of one PG-RPIM-STD if additional user equipment connections are required. The unit is equipped with one primary power breaker that will disengage power to all user equipment ports as needed. The mounting brackets are designed to be removable or rotated either 90°/180°/270° to allow maximum mounting flexibility.

MIL STD 461 UPS | MIL STD 810 UPS
EMI / EMC – PowergridM UPS system has been designed to comply with all the radiated emissions, susceptibility and conductive emissions requirements of the applicable sections of MIL STD 461F. The following is a list of methods used for controlling emissions: RE102 | CE102 | CS101 | CS114 | CS115 | CS116 | RS103 DESIGNED TO MEET
Environmental MIL-STD-810G: Humidity, Altitude, Sand and Dust, Shock and Vibration, Temperature.

Highlights

• Supports the connection of up to 4 PowergridM UPS systems.
• Provides a Daisy Chain Port for the Connection of a PG-RPIM-STD for Additional Equipment Connections.
• Push/Pull Master Breaker for Power Disconnect for All Connections.
• Remove and Rotate Mounting Brackets for Maximum Flexibility.
