Humidity | Altitude | Sand and Dust |
Shock and Vibration | Temperature
RE101 | RE102 | CE101 | CE102 | CE103
MIL-STD-1399-300B Type I

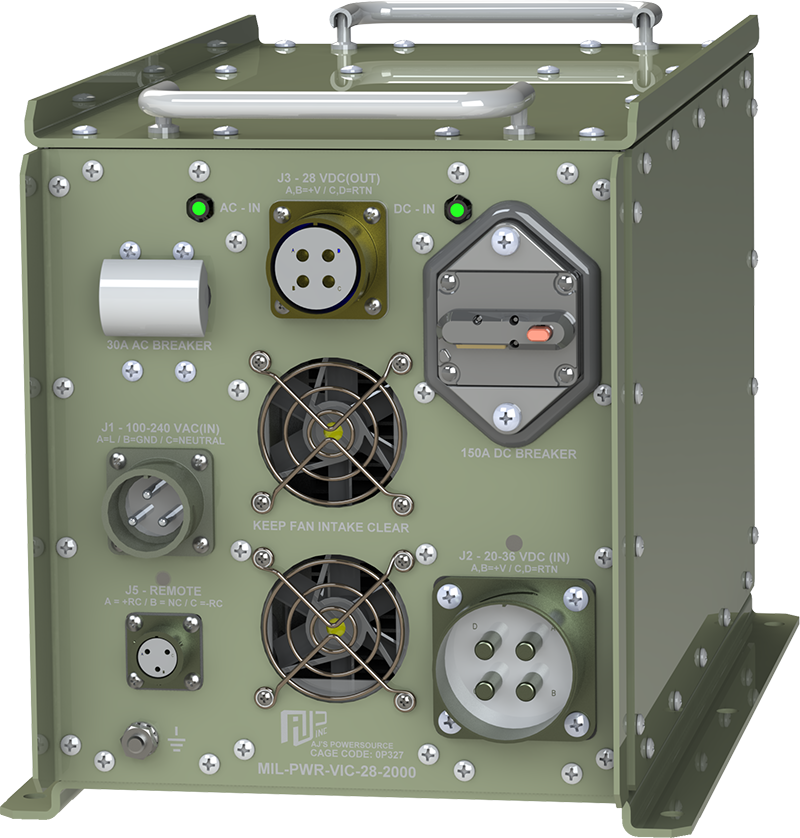

Military Vehicle AC-DC & DC-DC High Output Power Converter 2000W @ 28VDC – Part Number: MIL-PWR-VIC-28-2000
The MIL-PWR-VIC SeriesTMis a Military Vehicle AC-DC & DC-DC High Output Power Converter Designed for MRAP – JLTV – HMMWV – M1A2 Abrams Tank – Stryker – Buffalo – LTATV – Cougar – M9 and more.
The MIL-PWR-VIC SeriesTMis a ruggedized military compliant AC-DC & DC-DC high power system built for deployment and operations equipment. This series is available to all military, homeland security and government contractors. Light weight and built for reliability, these fully ruggedized systems are ready for worldwide deployment.
The MIL-PWR-VIC SeriesTM provides 28 VDC Military (MIL-STD-1275) compliant DC input (20-36VDC Range) or Universal VAC (100-264VAC) input from shore power or generator power with a multitude of output possibilities to include custom systems as required. These systems have internal surge suppression and wide temperature ranges. The MIL-PWR-VIC SeriesTM is available in multiple different color configurations and can be customized to meet desired requirements.
Our overall concept consists of aluminum watertight sealed case with a central heat plenum for front to back airflow (Can also be configured with an external heat sink). The MIL-PWR-VIC-28-2000 has been designed as a ruggedized military power system to hold up to MIL-STD-810G Shock and Vibration. The input/output will be provided via a Military Circular Connectors as well as sealed AC & DC input circuit breakers. This power supply is designed with weight and size in mind and has built in handles for easy carrying.
DC Input Voltage: 20-36VDC
AC Input voltage: 100-264VAC
Operating Temperature: -20C to +70C
Storage Temperature: -20C to +85C
Output Voltage: 28VDC
Output Power: 2000 Watts
Over Current Protection
Over Voltage Protection
Reverse Polarity Protection
Dimensions: 10.34”H x 9.8”W x 17.20L
