MIL-STD-810F
Humidity | Altitude | Sand and Dust |
Shock and Vibration | Temperature

MIL-STD-461E
RE101 | RE102 | CE101 | CE102 | CE103

MIL-STD-882D
MIL-STD-1472F
MIL-STD-1474D
MIL-STD-1399-300B Type I
MIL-STD-1275

1U 28VDC Military Ruggedized Uninterruptible Power Supply | 1U 28VDC Military Ruggedized UPS

aj-1500-titled

FRONT VIEW

aj-1500

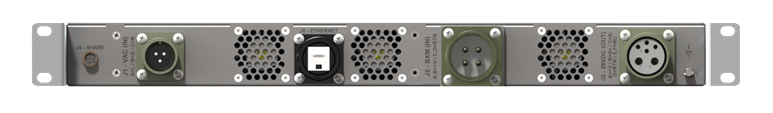

REAR VIEW

PG1500-UPS-DC28-back

REQUEST A QUOTE DOWNLOAD DATA SHEET

Highlights

• Ruggedized 1U 1200 Watts / 1500 VA weight in at 27 Lbs.
• Stack and Interconnect 1200/2400/3600/4800/6000 Watts.
• Hot Swap Battery @ 6 Lbs Each – 12+ Min Hold Time.
• Universal AC Input of 100-264 VAC & from 47-63, 400 Hz.
• 48VDC power input support.
• Computer Controlled Inverter Design.
• SNMP for Monitoring and Reporting (SNMP V3 Optional).
• Over Voltage Capacity for Managed In-Rush and Startup.
• Over Voltage and Over Temperature Protection Circuits.
• Lightning Protection with Safety Ground Connection.
• 1U 28VDC Military Ruggedized Rackmount UPS

1U 28VDC Military Ruggedized Uninterruptible Power Supply | 1U 28VDC Military Ruggedized UPS

Ruggedized 1500 VA / 1200 watts UPS is a Full Double Conversion Rack Mount Tactical Uninterruptible Power Supply in a 1U (1.73” High) Ruggedized Chassis That is 23” in Length Weighing Less Than 27 Pounds.

The PowergridM technology is implemented with a Load Balancing Interconnect (LBI) design that allows up to five (5) of the PowergridM 1500 units to be interconnected to create a 1200, 2400, 3600, 4800, or 6000 Watts Uninterruptible Power Solution. The LBI interconnects the inverter and power circuits in each unit allowing them to work together to provide a fully meshed, load balanced and uninterruptible power grid for the attached systems. Each attached UPS will provide its share of the demanded power while ensuring frequency and power synchronization with its attached neighbors.

MIL STD 461 UPS | MIL STD 810 UPS
EMI / EMC – PowergridM UPS system has been designed to comply with all the radiated emissions, susceptibility and conductive emissions requirements of the applicable sections of MIL STD 461F. The following is a list of methods used for controlling emissions: RE102 | CE102 | CS101 | CS114 | CS115 | CS116 | RS103 DESIGNED TO MEET
Environmental MIL-STD-810G: Humidity, Altitude, Sand and Dust, Shock and Vibration, Temperature.

Special Features

Features-Table-1
StackingSystem-1
