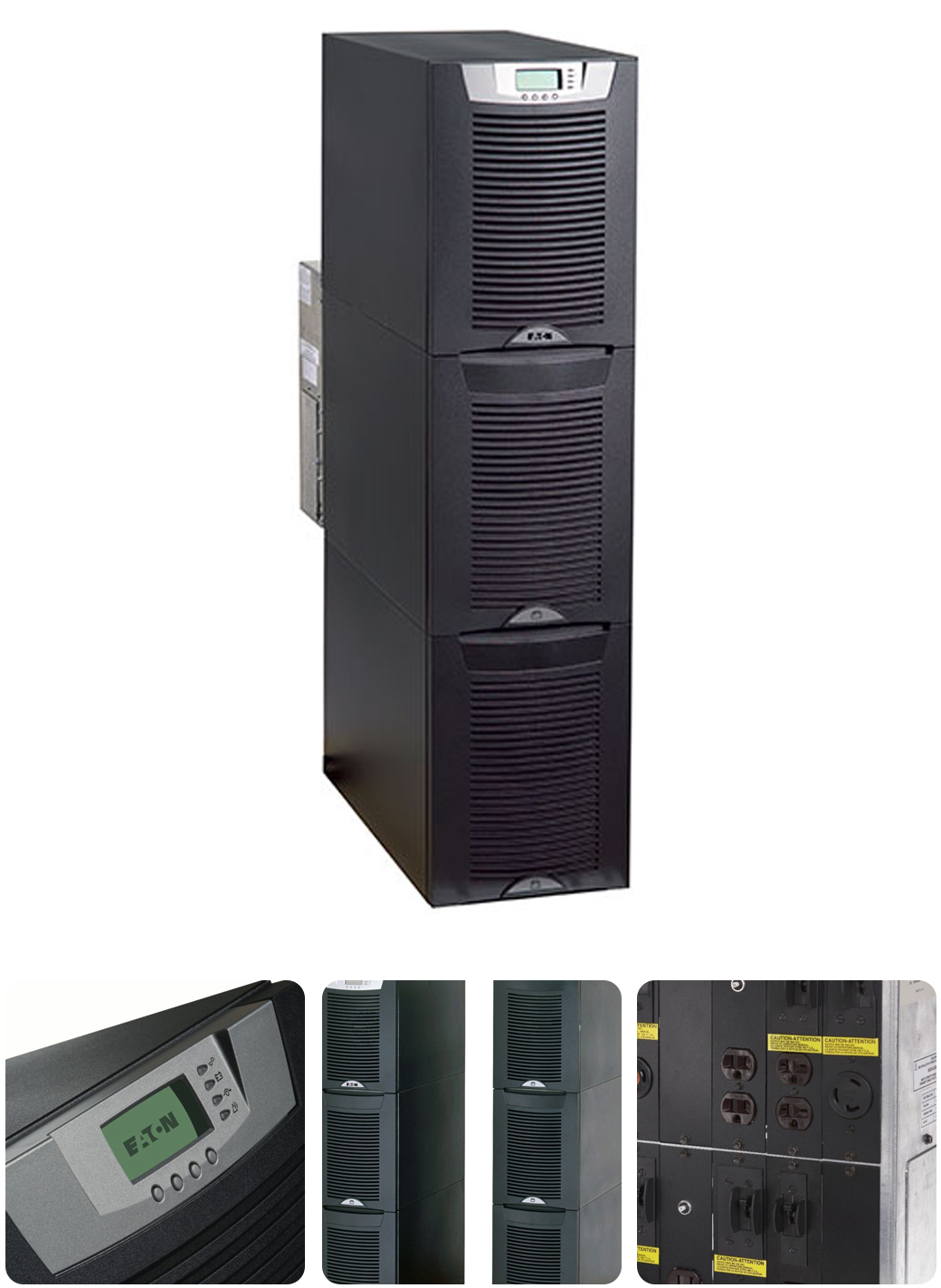

Eaton 9355 UPS (formerly the Powerware 9355) is a three-phase, double-conversion online UPS that provides a complete power protection solution. In a footprint that is up to 75 percent smaller than comparable UPSs, the 9355 UPS comes complete with internal batteries, an integrated power distribution module and a maintenance bypass switch.
>> Medical applications >> Telecom & networking devices >> Server farm & data center
Without the need for large external battery cabinets, it is possible to parallel up to four UPSs to build out redundancy or add capacity with less space than a typical large UPS requires, thanks to Eaton’s patented HotSync paralleling technology.
Single Phase:
3S UPS | 5P UPS | 5PX UPS | 5S UPS | 5SC UPS | 9155 Marine UPS | 9155 UPS | 9PX UPS | 9PXM UPS | 9SX UPS | Emergency Lighting UPS | Ferrups FX UPS | Ferrups UPS
Three Phase:
9355 UPS | 93E UPS | 93PM UPS | 9PHD Marine UPS | Blade UPS | Emergency Lighting UPS
End of Row
9155 UPS | 9355 UPS | 93E UPS | 93PM UPS | 9PXM UPS | Blade UPS
Facility Level
93PM UPS
Rackmount
5P UPS | 5PX UPS | 9PX UPS | 9PXM UPS | Blade UPS
Tower:
5P UPS | 5PX UPS | 5SC UPS | 9155 Marine UPS | 9155 UPS | 9355 UPS | 93E UPS | 93PM UPS | 9PHD Marine UPS | 9PX UPS | 9PXM UPS | 9SX UPS | Emergency Lighting UPS | Ferrups FX UPS | FERRUPS UPS
Wallmount:
5P UPS
0-1 kVA:
3S UPS | 5S UPS | 5SC UPS | 9PX UPS | 9SX UPS
1-3 kVA:
5P UPS | 5PX UPS | 5S UPS | 5SC UPS | 9PX UPS | 9SX UPS
5-6 kVA:
9PX UPS | 9PXM UPS | Blade UPS | Emergency Lighting UPS | Ferrups FX UPS | FERRUPS UPS
7-12 kVA:
9155 Marine UPS | 9155 UPS | 9355 UPS | 9PX UPS | 9PXM UPS | Blade UPS | Emergency Lighting UPS | Ferrups FX UPS | FERRUPS UPS
13-19 kVA:
9155 Marine UPS | 9155 UPS | 9355 UPS | 9PXM UPS | Blade UPS | Emergency Lighting UPS | Ferrups FX UPS | FERRUPS UPS
20-40 kVA:
9155 Marine UPS | 9355 UPS | 93E UPS | 93PM UPS | 9PHD Marine UPS | 9PXM UPS | Blade UPS | Emergency Lighting UPS
41-80 kVA:
93E UPS | 93PM UPS | 9PHD Marine UPS | Blade UPS | Emergency Lighting UPS
81-160 kVA:
93PM UPS | 9PHD UPS | Emergency Lighting UPS
161-400 kVA:
93PM UPS | 9PHD UPS | Emergency Lighting UPS
Nigel Pearson
– VP Sales & Marketing –
Nigel@ajpowersupply.com
Mike Henderson
– Director, Strategic & International Sales –
MikeH@ajpowersupply.com
• More real power in less space with 0.9 output power factor
• Small footprint and more power capacity than other UPSs
• Can be upgraded with an additional 10 kVA of capacity
• Sleek tower design that includes internal batteries
• Power distribution module options
• Split phase architecture
• Enables paralleling of up to four 9355 UPSs for additional capacity and redundancy
• Extended battery runtime options
• Optional bypass to service UPS without disturbing the load
• Connectivity and software options for remote monitoring
HIGHLIGHTS
POWER RATING: 10-30 kVA
VOLTAGE: 208/220/400/480/600 VAC three phase
FREQUENCY: 50/60 Hz
TOPOLOGY: Double conversion
CONFIGURATION: Tower
GENERAL
DIAGNOSTICS: Full system self-test at startup
UPS BYPASS: Automatic on overload or UPS failure
PARALLEL FOR REDUNDANCY: Yes, using Powerware Hot Sync technology and capacity
DIMENSIONS AND WEIGHTS: See product brochure
OVERLOAD (NORMAL OPERATION): 150% for 5 sec / 125% for 1 min (online), 110% for 10 min
COMMUNICATIONS
LCD DISPLAY: Graphical LCD with blue backlight
LEDS: (4) LEDs for notice and alarm
AUDIBLE ALARMS: Yes
COMMUNICATION PORTS:(1) RS-232, (1) relay contact, (1) REPO, (2) environmental input
COMMUNICATION SLOTS: (2) X-Slot communication bays
POWER MANAGEMENT SOFTWARE: Bundled software suite CD
ENVIRONMENTAL
OPERATING TEMPERATURE: 50–104ºF (10–40ºC), 45ºC with 7.5% derating; Optimal battery performance: 77ºF (25ºC)
STORAGE TEMPERATURE: 32–77ºF (0–25ºC); Recommended battery storage: 59–77ºF (15–25ºC)
RELATIVE HUMIDITY: 9355 (10 – 15 kVA): 0–95%, non-condensing
RELATIVE HUMIDITY: 9355 (20 – 30 kVA): 5–95%, non-condensing
AUDIBLE NOISE: 9355 (10 – 15 kVA): <56 dBA at 1 meter (noiseless room) typical
AUDIBLE NOISE: 9355 (20 - 30 kVA): <58 dBA at 1 meter depending on load
ALTITUDE: 9355 (10 - 15 kVA): 9,843 ft. (3000m) without derating
ALTITUDE: 9355 (20 - 30 kVA): <3000m
INPUT CHARACTERISTICS
NOMINAL INPUT VOLTAGE: 9355 (10 – 15 kVA): 208V/120V or 220V/127V three-phase 400V models also available
NOMINAL INPUT VOLTAGE:9355 (20 – 30 kVA): 208V/120V, 220V/127V +10, -15% 480V/277V, 600V (480+600 with transformer) 400V models also available
INPUT CHARACTERISTICS
INPUT VOLTAGE RANGE: -15%, +10% from nominal at 100% load without depleting battery
OPERATING FREQUENCY: 50/60 Hz (45 to 65 Hz)
INPUT POWER FACTOR: 9355 (10 – 15 kVA): >0.99 typical, >0.96 frequency converter
INPUT POWER FACTOR:9355 (20 – 30 kVA): 0.99 typical
INPUT CURRENT DISTORTION: 5% THD
OUTPUT CHARACTERISTICS
NOMINAL OUTPUT VOLTAGE: 9355 (10 – 15 kVA): 208/120, 220/127 Vac
NOMINAL OUTPUT VOLTAGE: 9355 (20 – 30 kVA): 208/120, 220/120 Vac
OUTPUT VOLTAGE REGULATION: 9355 (10 – 15 kVA): ±1% static; ±5% dynamic at 100% resistive load change, <1 ms response time
OUTPUT VOLTAGE REGULATION: 9355 (20 - 30 kVA): ±1% static; ±4% dynamic with 100% step load recovery within 1 ms response time
EFFICIENCY: 91%, typical
OUTPUT CHARACTERISTICS
HEAT DISSIPATION (BTU/HR):
10 kVA models: 3,798 @ 208V and 220V input 6,294 @ 480V and 600V (with input isolation transformer)
15 kVA models: 5,122 @ 208V and 220V input 8,134 @ 480V and 600V (with input isolation transformer)
20 kVA models: 6,762 @ 208V and 220V input 10,450 @ 480V and 600V (with input isolation transformer)
30 kVA models: 9,220 @ 208V and 220V input 13,831 @ 480V and 600V (with input isolation transformer)
BATTERY TYPE
BATTERY TYPE: 9 Ah, sealed, lead-acid, maintenance-free
BATTERY RUNTIME: See product brochure
BATTERY MANAGEMENT: ABM technology
BATTERY REPLACEMENT: Field-replaceable
CHARGER: 9355 (10 – 15 kVA): Default is 3.4A per battery string. Charger current is configurable from 0.5A to 25A per string with an overall maximum of 34A (limited by input current)
CHARGER: 9355 (20 – 30 kVA): Default is 8A
START-ON-BATTERY: Allows start of UPS without utility input
CERTIFICATIONS
SAFETY CERTIFICATIONS: UL1778 5th Edition, CSA C22.2 No. 107.3-14, NOM-NYCE
EMC COMPLIANCE: 47 CFR Part 15/ICES-003 Class A
QUALITY: ISO 9001:2015, ISO 14001:2004
SURGE ANSI C62.41 Category B3, IEC 61000-4-5
MARKINGS: cULus, NOM-NYCE
POWER DISTRIBUTION MODULE WITH MECHANICAL BYPASS SWITCH: See product brochure
OPTIONS: See product brochure
BUILT-IN CONNECTIVITY OPTIONS: See product brochure
Coming soon!
Please, come back later or Contact us
Easy to remove, you can replace the internal battery once it ages to extend the service life of your rack mount, wall mount, tower and compact UPS.
A three-year warranty is available for mostly UPS products purchased in the United States and Canada. Please, contact our reps for more information.
Scan the QR Code on the front of the UPS with your cell phone device to quickly access the installation, user manual and any other special feature and information.
The easy-to-navigate interface and user friendly menu allows you to view detailed information and customize all UPS settings at the push of a button.
Lithium-ion batteries last longer and recharge faster, saving time, money and reducing risk throughout the lifecycle of the uninterruptible power systems (UPS). While valve regulated lead acid (VRLA) batteries have long been the industry choice for UPSs, new lithium-ion batteries offer these additional benefits while still meeting required backup runtime and are a safe and stable alternative battery option for UPS applications. Transform your power infrastructure with lithium-ion batteries.
A three-year warranty is available for the following UPS products purchased in the United States and Canada. In addition to UPS products, our PDU product line is also covered by a three-year warranty. Please note that you will need the serial number located on the product label of the UPS.
AJ’s Power Source Inc. is a leading-edge supplier for the Eaton Industrial 9355 Power Protection UPS. The Eaton 9355 UPS (formerly the Powerware 9355) is a three-phase, double-conversion online UPS that provides a complete power protection solution.
In a footprint that is up to 75 percent smaller than comparable UPSs, the 9355 UPS comes complete with internal batteries, an integrated power distribution module and a maintenance bypass switch. Without the need for large external battery cabinets, it is possible to parallel up to four UPSs to build out redundancy or add capacity with less space than a typical large UPS requires, thanks to Eaton’s patented HotSync paralleling technology.
The Eaton Industrial Blade Battery Backup Power UPS even offers flexibility in battery types with two models offering lithium-ion batteries. Complete your battery backup power solution by pairing the UPS with Gigabit Network card–the first in the industry to comply with the UL and IEC cybersecurity standards–and the Intelligent Power Management (IPM) platform for seamless management of your connected equipment.
AJPS has always provided fast, reliable, and enthusiastic service to our customers during development, production, and follow-on support. To learn more about our Eaton Industrial Battery Backup Power UPS, please do not hesitate to call our office today at (813) 996-2583 or Contact Us by email.
